Product details

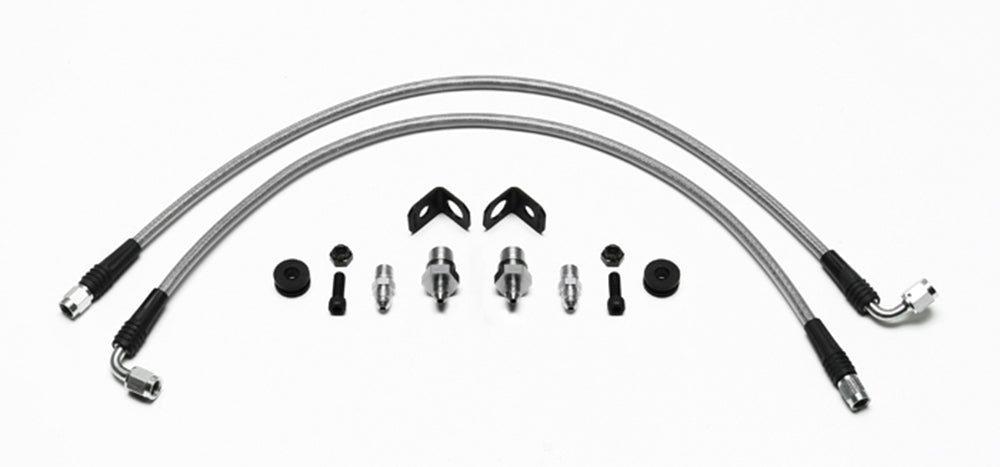

The Evolution VIII front conversion uses angled hose outlets and separate straight caliper adapters. Wilwood includes 22-inch lines and support hardware for the specified chassis-side bubble-flare connection. Wilwood Engineering is a designer and manufacturer of disc brake systems and components, founded by Bill Wood in 1977 and based in Camarillo, California. Calipers, brake rotors, master cylinders, valves, fittings and brake lines support its motorsport, street-performance and specialized applications. Each is selected according to the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 220-9287
- Component: Brake flexline and fitting kit
- Hose length (inches): 22.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: 90 Degree
- Caliper adapter angle: Straight
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6956
- Chassis adapter reference: 220-6890
- Line support reference: 250-7013
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
Verify the Mitsubishi Lancer Evolution VIII front brake kit and bracket layout. The angled hose end and straight NPT adapter must be considered together; an original-caliper banjo hose is a different connection arrangement.
Manufacturer Documents
For a fitment check, give PMB Performance the vehicle year, brake configuration and details of both mating connections. Our team brings more than 20 years of parts and brake-system experience to the comparison.
