Product details

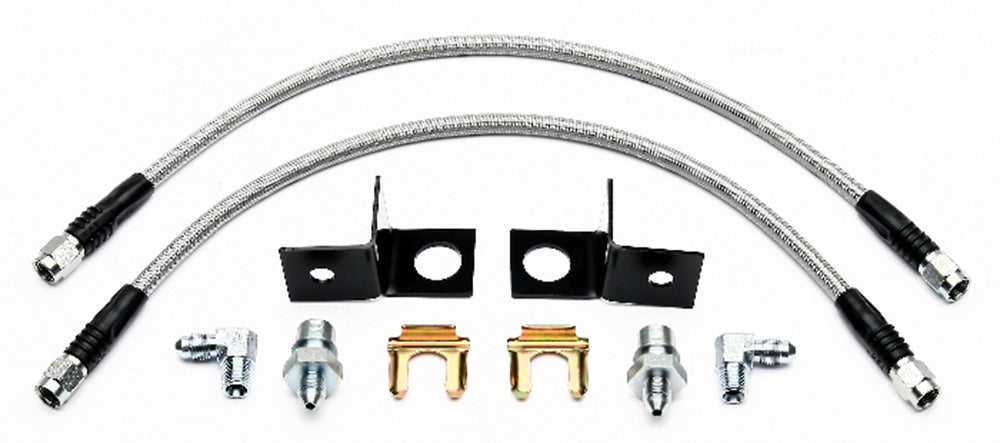

This Mustang rear hose arrangement includes offset L-brackets for the chassis connections. The 18-inch flexlines and NPT elbows are specified for the conversion that uses an internal parking-brake assembly. Bill Wood founded Wilwood Engineering in 1977. From its base in Camarillo, California, Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Compatibility with the complete brake system governs selection of the individual components.
Technical Details
- Manufacturer part number: 220-9248
- Component: Brake flexline and fitting kit
- Hose length (inches): 18.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6890
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-9140 / 250-9141
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
The product identity names 2005–2006 Ford Mustang rear applications, and the current page identifies the 2005 internal-parking-brake kit. Confirm the complete rear conversion rather than substituting this package for the CPB caliper hose set.
Manufacturer Documents
PMB Performance can help compare the fitting arrangement with your brake system, drawing on over 20 years of experience. Include the vehicle details and clear views of the mating hardware.
