Product details

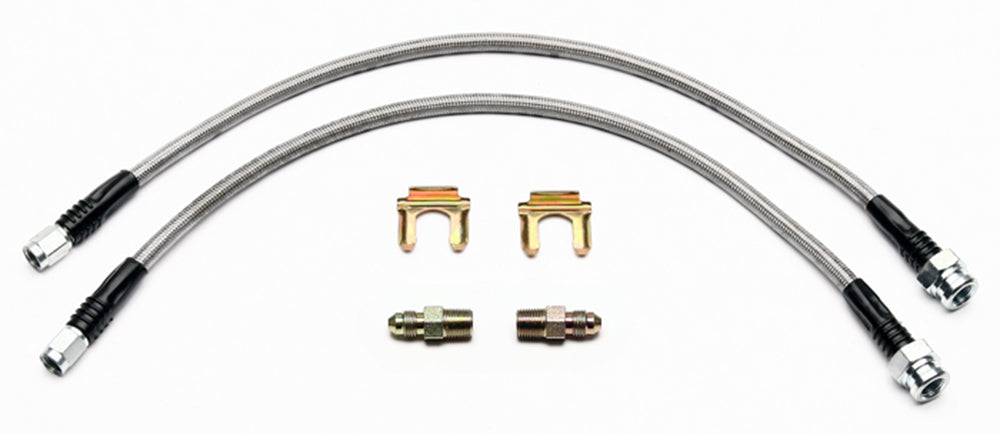

Straight caliper adapters distinguish this Nissan 240SX hose package from later hose sets that use elbows. The 23-inch lines have integrated metric inverted-flare chassis sockets and straight female -3 outlets. The Wilwood range brings together calipers, brake rotors, master cylinders, valves, fittings and brake lines for complete-system component selection. Wilwood Engineering was founded by Bill Wood in 1977, is based in Camarillo, California, and designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 220-9199
- Component: Brake flexline and fitting kit
- Hose length (inches): 23.00
- Line or fitting size: -3
- Hose inlet connection: M10 inverted flare Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: Straight
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6956
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
The product identity names 1995–1998 Nissan 240SX front Superlite applications, while the current page gives no full year range. Match the exact conversion and caliper approach; the longer line path does not justify substituting a different fitting angle.
