Product details

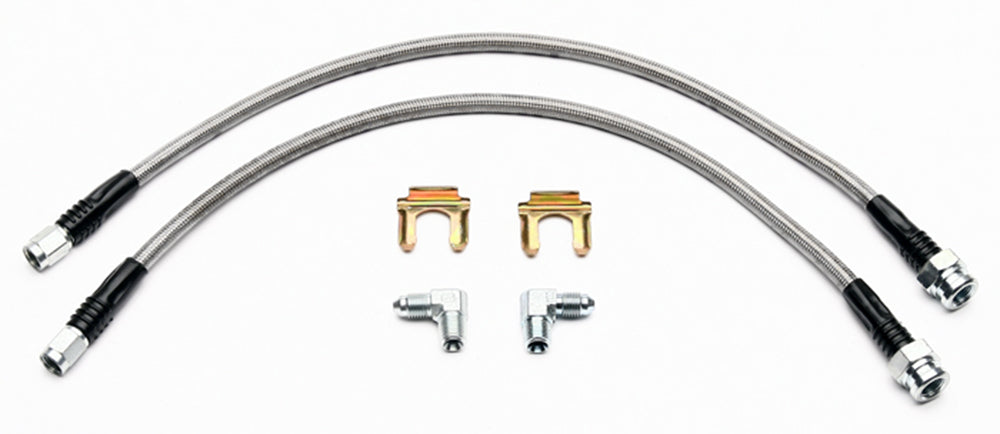

Integrated metric chassis sockets form one end of these 23-inch front flexlines. Wilwood supplies NPT caliper elbows for the specified 350Z and G35 conversion installation. The complete brake system's requirements guide the selection of individual Wilwood components. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its component range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 220-9196
- Component: Brake flexline and fitting kit
- Hose length (inches): 23.00
- Line or fitting size: -3
- Hose inlet connection: M10 inverted flare Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
Match the Nissan 350Z or Infiniti G35 model year, brake package and hard-line socket. The hose page does not publish a complete shared year range, so a connection match must be checked alongside the exact front kit.
Manufacturer Documents
If the brake system has been modified, contact PMB Performance with the installed component references and routing dimensions. We have more than 20 years of experience helping match brake parts to their applications.
