Product details

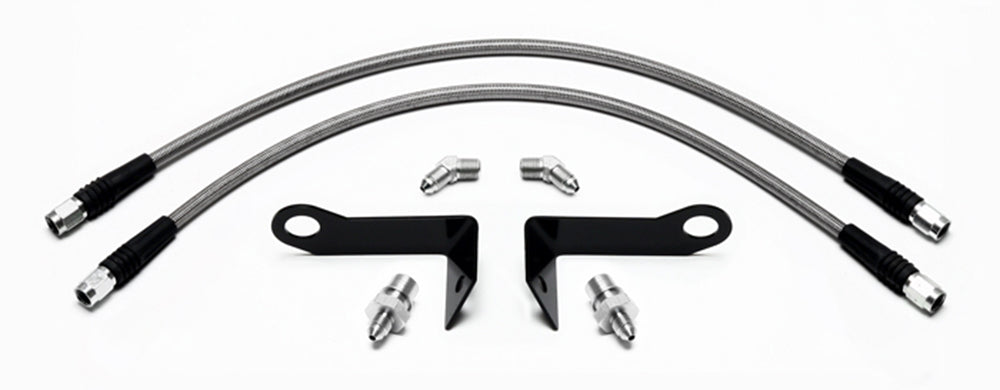

This Mustang front flexline package includes dedicated brackets to locate the chassis connections. The 18-inch lines connect through metric bubble-flare adapters and 45-degree NPT caliper fittings. The manufacturer is Wilwood Engineering, established by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems for motorsport, street-performance and specialized applications, supplying calipers, brake rotors, master cylinders, valves, fittings and brake lines whose selection must suit the complete brake system.
Technical Details
- Manufacturer part number: 220-9111
- Component: Brake flexline and fitting kit
- Hose length (inches): 18.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 45 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6412
- Chassis adapter reference: 220-6890
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-9142 / 250-9143
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
The current Wilwood kit note covers 2005–2014 Ford Mustang front conversions. Confirm the exact installed brake kit and brackets, especially where the suspension or hard-line routing has changed; later Mustang hose sets use different chassis threads.
Manufacturer Documents
Use PMB Performance's 20-plus years of experience when checking uncertain fitment. Identify the actual hose ends, port seats and brake package as well as the vehicle before ordering.
