Product details

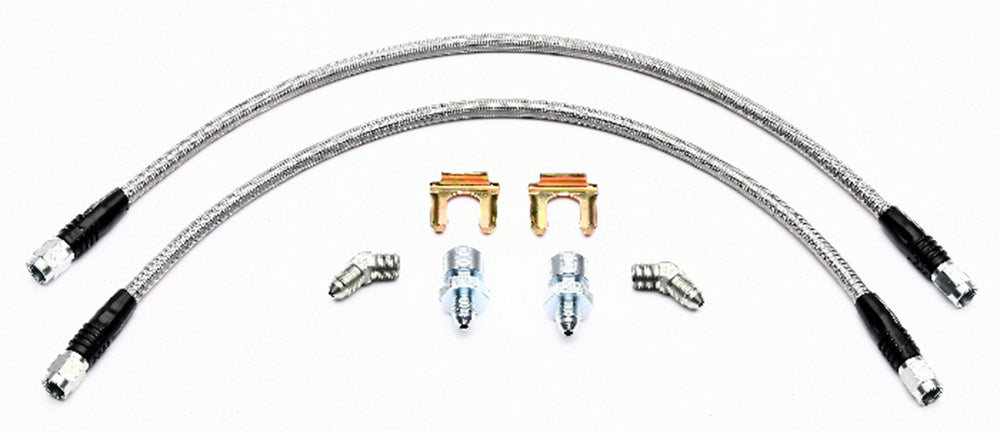

The rear C6 conversion hose pair is shorter than the related front package. Wilwood combines 16-inch straight-ended lines with M10 x 1 inverted-flare chassis adapters and 45-degree caliper fittings. A complete brake system depends on compatible component selection. Wilwood Engineering designs and manufactures disc brake systems along with calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized use. Bill Wood founded Wilwood in 1977; the company is based in Camarillo, California.
Technical Details
- Manufacturer part number: 220-9101
- Component: Brake flexline and fitting kit
- Hose length (inches): 16.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 45 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6412
- Chassis adapter reference: 220-6413
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Verify the Chevrolet Corvette C6 rear kit, model year and installed caliper before ordering. The current hose page does not establish C7 rear fitment, and the NPT fittings are distinct from original-caliper banjo connections.
Manufacturer Documents
For a fitment check, give PMB Performance the vehicle year, brake configuration and details of both mating connections. Our team brings more than 20 years of parts and brake-system experience to the comparison.
