Product details

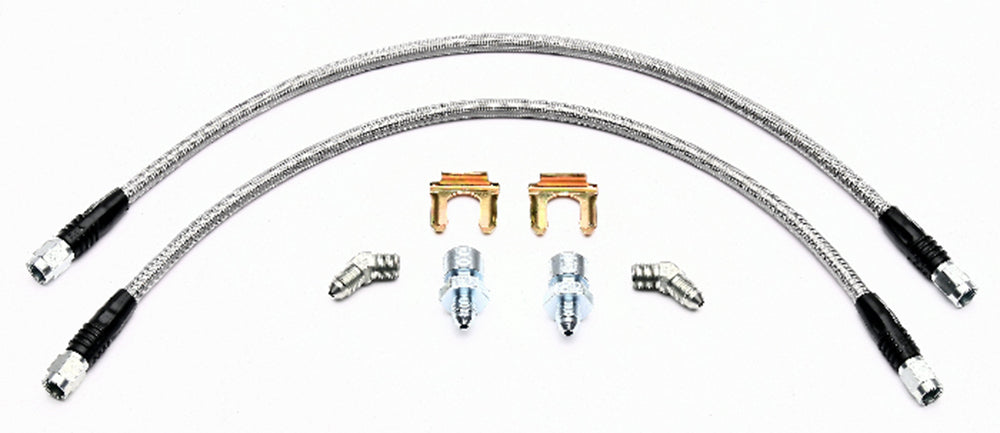

Wilwood's current kit note identifies this front hose package for both C6 and C7 conversion systems. Straight 18-inch flexlines connect the metric inverted-flare chassis adapters to angled NPT fittings at the calipers. Wilwood Engineering, founded in 1977 by Bill Wood, designs and manufactures disc brake systems and components in its role as a Camarillo, California-based brake specialist. Its range serves motorsport, street-performance and specialized applications through calipers, brake rotors, master cylinders, valves, fittings and brake lines. Selection of each part must match the complete brake system's requirements.
Technical Details
- Manufacturer part number: 220-9100
- Component: Brake flexline and fitting kit
- Hose length (inches): 18.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 45 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6412
- Chassis adapter reference: 220-6413
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Match the actual Chevrolet Corvette C6 or C7 brake kit and production year; the page does not give a complete trim or year range. Original-caliper banjo hose assemblies have different interfaces and are not interchangeable with this conversion package.
