Wilwood Front TX6R Conversion Lines for Ford F-150 4WD (2004–2008), 16-Inch Hoses

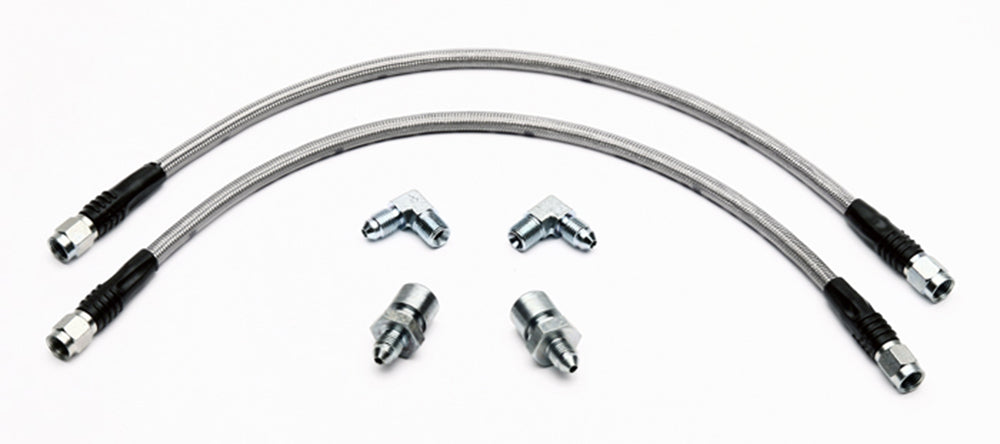

This front F-150 hose set connects the specified TX6R conversion through imperial chassis fittings. Its 16-inch lines use straight -3 ends and separate right-angle NPT caliper adapters. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its component range, with individual parts chosen to match the complete system rather than considered in isolation.

Technical Details

• Manufacturer part number: 220-9073
• Component: Brake flexline and fitting kit
• Hose length (inches): 16.00
• Line or fitting size: -3
• Chassis adapter connection: -3 to 3/8-24 inverted flare
• Hose inlet connection: -3 Female
• Hose inlet angle: Straight
• Hose outlet connection: -3 Female
• Hose outlet angle: Straight
• Caliper adapter angle: 90 Degree
• Caliper connection: 1/8-27 NPT
• Caliper adapter reference: 220-13125
• Chassis adapter reference: 220-13124
• Hose quantity: 2
• Listed weight: 0.800 lb

Fitment & Compatibility

DS1131 specifies these hoses for front TX6R kit 140-15286 on 2004–2008 Ford F-150 trucks with six-lug hubs and four-wheel drive. That documented kit uses 15.50-inch rotors; its range extends beyond the hose page heading of 2005–2006. Confirm the installed kit, 3/8-24 inverted-flare hard-line seats and required routing space.

Manufacturer Documents

• Wilwood product specifications
• Wilwood flexline fitting guide
• Wilwood application and installation reference

PMB Performance draws on over 20 years of brake and parts experience. Clear photographs of the connections and the installed brake package are useful when confirming this component.
