Product details

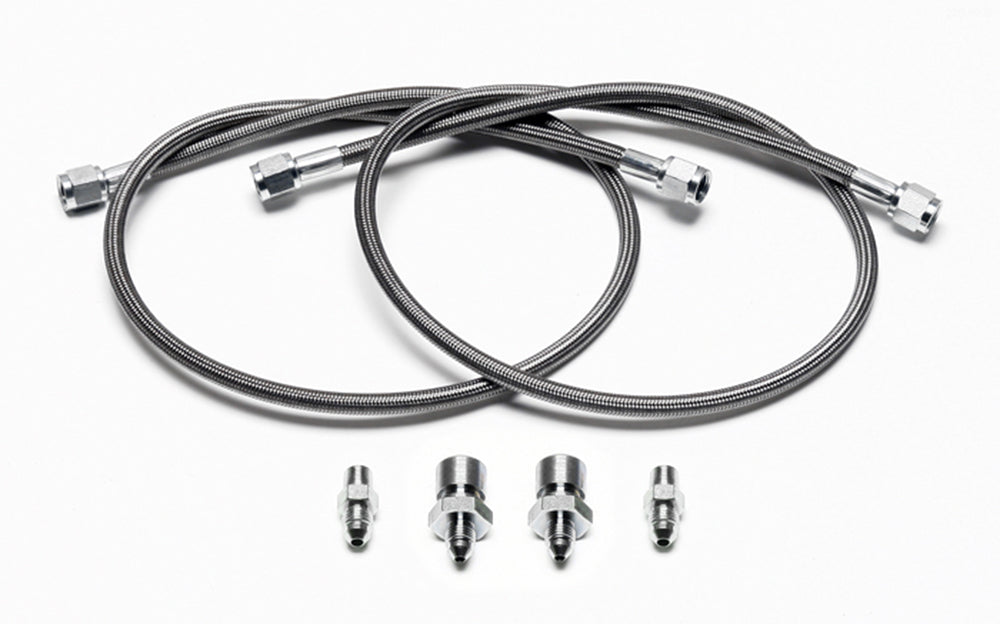

This GM truck front package uses 31-inch -4 hoses and straight NPT caliper fittings. The larger hose interfaces and long routing distinguish it from the shorter -3 passenger-car kits. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Those components need to be selected together around the complete brake system's requirements.
Technical Details
- Manufacturer part number: 220-8998
- Component: Brake flexline and fitting kit
- Hose length (inches): 31.00
- Line or fitting size: -4
- Chassis adapter connection: -4 to 7/16-24 inverted flare
- Hose inlet connection: -4 Female
- Hose inlet angle: Straight
- Hose outlet connection: -4 Female
- Hose outlet angle: Straight
- Caliper adapter angle: Straight
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-9075
- Chassis adapter reference: 220-9076
- Hose quantity: 2
- Listed weight: 1.200 lb
Fitment & Compatibility
Wilwood identifies 1999–2006 GM 1500 and 2500 front conversions with 16-inch rotors. Match the exact caliper package, 7/16-24 inverted-flare chassis connection and -4 fittings; a different rotor kit may specify a shorter hose and angled adapter.
Manufacturer Documents
If the brake system has been modified, contact PMB Performance with the installed component references and routing dimensions. We have more than 20 years of experience helping match brake parts to their applications.
