Product details

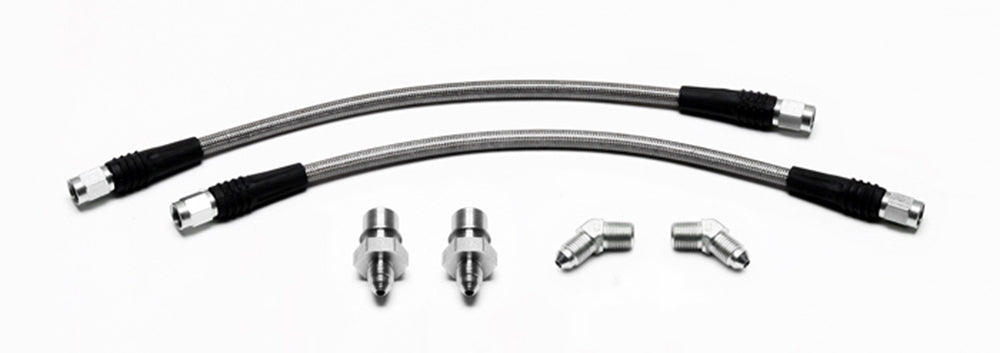

This rear E36 M3 package is associated with the Wilwood Dynalite conversion and uses 12-inch flexlines. The hose ends remain straight; separate 45-degree adapters provide the approach to the calipers. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California, where it designs and manufactures disc brake systems and components. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications, with each component selected to suit the complete brake system.
Technical Details
- Manufacturer part number: 220-8800
- Component: Brake flexline and fitting kit
- Hose length (inches): 12.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 45 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6412
- Chassis adapter reference: 220-6890
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Verify the installed BMW E36 M3 rear kit, M10 x 1 bubble-flare chassis connections and NPT inlet arrangement. Another E36 rear hose package has a shorter 10-inch length, so select by the exact brake installation rather than model name alone.
Manufacturer Documents
PMB Performance can help compare the fitting arrangement with your brake system, drawing on over 20 years of experience. Include the vehicle details and clear views of the mating hardware.
