Product details

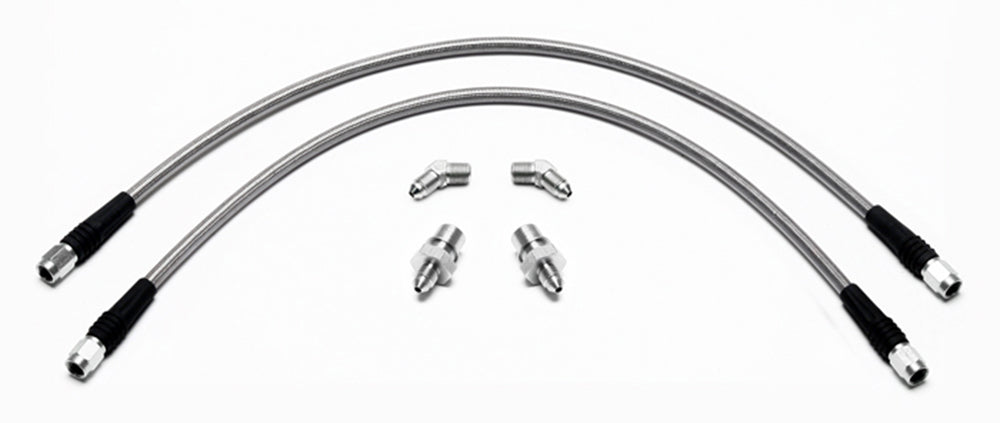

The E36 M3 front conversion uses this Wilwood pair of 16-inch straight-ended hoses. Separate 45-degree fittings orient the lines at the NPT caliper ports, while bubble-flare adapters serve the chassis plumbing. Wilwood Engineering is a Camarillo, California manufacturer founded by Bill Wood in 1977. Disc brake design and manufacturing extend across calipers, brake rotors, master cylinders, valves, fittings and brake lines. Parts for street-performance, specialized applications and motorsport must be selected to meet the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 220-8799
- Component: Brake flexline and fitting kit
- Hose length (inches): 16.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 45 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6412
- Chassis adapter reference: 220-6890
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Match the exact BMW E36 M3 front kit and actual hard-line seats; this hose page gives no complete model-year range. Do not assume the NPT caliper adapters connect to an original BMW caliper simply because the chassis fittings match.
Manufacturer Documents
PMB Performance draws on over 20 years of brake and parts experience. Clear photographs of the connections and the installed brake package are useful when confirming this component.
