Product details

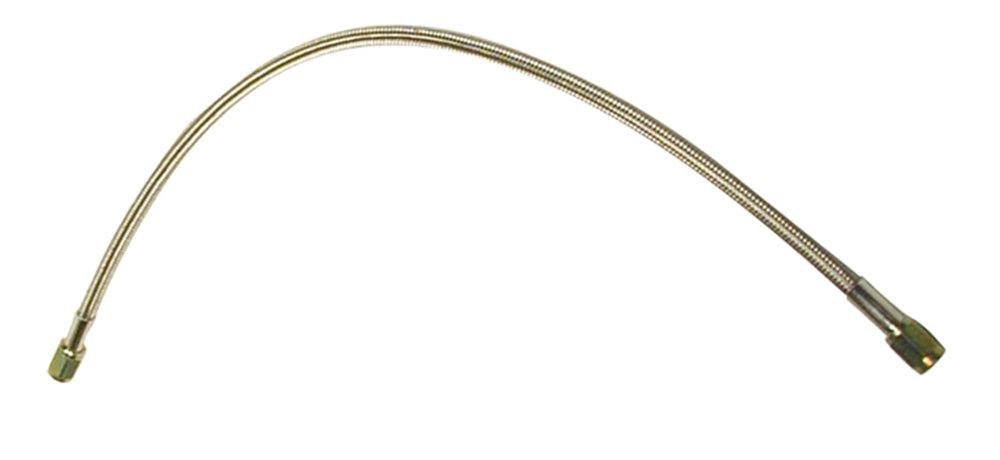

At 10 inches overall, this Wilwood hose is intended for a compact connection where a longer line is unnecessary. Straight female -3 fittings terminate the braided flexible section. Bill Wood founded Wilwood Engineering in 1977, and the manufacturer is based in Camarillo, California. Wilwood designs and manufactures disc brake systems alongside calipers, master cylinders, rotors, fittings, brake lines and valves. The motorsport, street-performance and specialized ranges depend on components selected to work within a complete braking system.
Technical Details
- Manufacturer part number: 220-8763
- Component: Individual braided brake hose
- Hose length (inches): 10.00
- Line or fitting size: -3
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Hose quantity: 1
- Listed weight: 0.500 lb
Fitment & Compatibility
Select the hose only after checking how the connected parts move relative to each other. A short line must still allow the required travel and avoid loading the crimps; vehicle or axle suitability depends on the complete installation.
Manufacturer Documents
With more than 20 years of experience, PMB Performance can assist with brake-component selection. Provide the vehicle and installed brake details so the connection and mounting requirements can be checked together.
