Product details

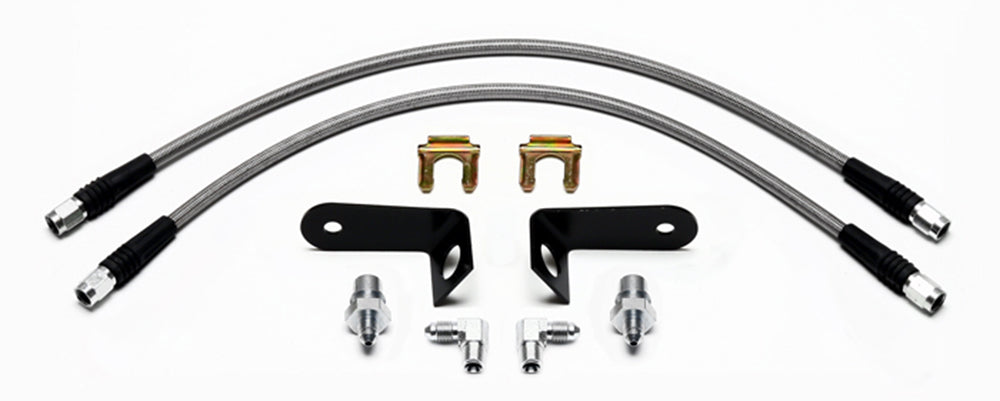

Angled L-brackets position the chassis connections for this GTO front flexline set. Wilwood combines the brackets with 18-inch hoses, bubble-flare adapters and right-angle NPT caliper fittings. Wilwood Engineering designs and builds disc brake systems in Camarillo, California. Bill Wood established the company in 1977; it supplies brake rotors, calipers, master cylinders, valves, fittings and lines for specialized applications, street performance and motorsport. The complete brake system determines which individual components are appropriate.
Technical Details
- Manufacturer part number: 220-8755
- Component: Brake flexline and fitting kit
- Hose length (inches): 18.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6890
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-9349 / 250-9350
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
Match the 2005–2006 Pontiac GTO front Wilwood kit and verify both bracket orientation and hose sweep. The same M10 x 1 thread appears on other hose packages, but their seating and mounting arrangements may differ.
Manufacturer Documents
Use PMB Performance's 20-plus years of experience when checking uncertain fitment. Identify the actual hose ends, port seats and brake package as well as the vehicle before ordering.
