Wilwood 16-Inch Brake Flexline, Straight Female -3 to 90-Degree Female -3

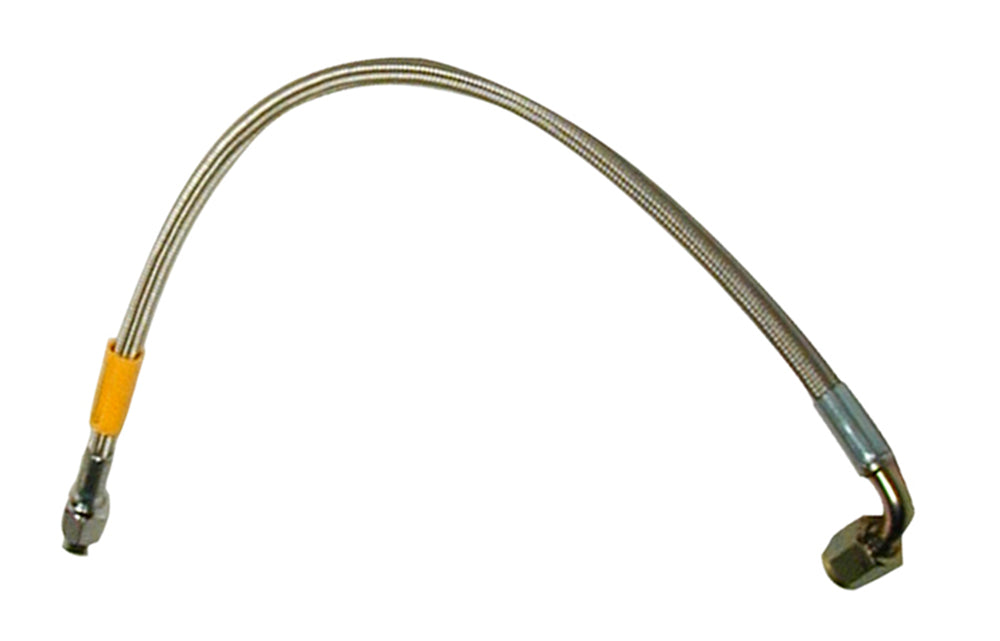

This single Wilwood hose places a 90-degree female fitting at one end of a 16-inch braided line. The opposite straight fitting leaves the approach at that end aligned with the hose. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc braking systems and components, including calipers, master cylinders, brake rotors, fittings, valves and brake lines. Its motorsport, specialized and street-performance range requires individual parts matched to the complete braking arrangement.

Technical Details

• Manufacturer part number: 220-8523
• Component: Individual braided brake hose
• Hose length (inches): 16.00
• Line or fitting size: -3
• Hose inlet connection: -3 Female
• Hose inlet angle: Straight
• Hose outlet connection: -3 Female
• Hose outlet angle: 90 Degree
• Hose quantity: 1
• Listed weight: 0.500 lb

Fitment & Compatibility

Check both -3 mating flares and the elbow's orientation before committing to this length. The universal hose needs installation-specific adapters and supports; neither the bend nor its overall length determines front or rear fitment.

Manufacturer Documents

• Wilwood product specifications
• Wilwood flexline fitting guide

For a fitment check, give PMB Performance the vehicle year, brake configuration and details of both mating connections. Our team brings more than 20 years of parts and brake-system experience to the comparison.
