Product details

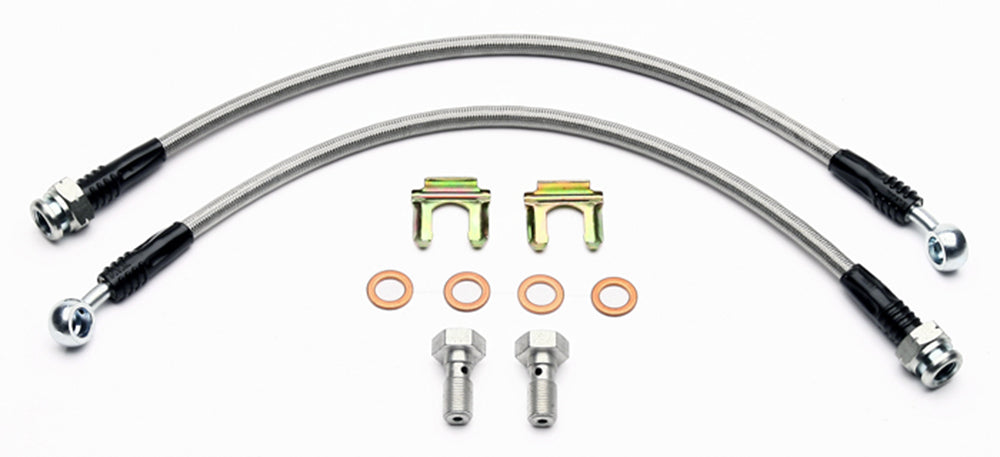

Wilwood packages two 15-inch hoses and banjo hardware for the C4 original-caliper front installation. The hoses use 30-degree banjo blocks and metric bubble-flare chassis sockets. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems, with calipers, brake rotors, master cylinders, fittings, valves and lines serving motorsport, street-performance and specialized uses. Select individual parts to meet the needs of the complete brake system.
Technical Details
- Manufacturer part number: 220-8516
- Component: Brake flexline and fitting kit
- Hose length (inches): 15.00
- Line or fitting size: -3
- Hose inlet connection: M10 bubble flare Female
- Hose inlet angle: Straight
- Hose outlet connection: M10 Banjo
- Hose outlet angle: 30 Degree
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Confirm the 1988–1996 Chevrolet Corvette C4 front brake arrangement and bracket retention before installation. This original-caliper connection differs from Wilwood conversion hoses with separate NPT adapters, despite sharing the same vehicle generation.
Manufacturer Documents
PMB Performance draws on over 20 years of brake and parts experience. Clear photographs of the connections and the installed brake package are useful when confirming this component.
