Product details

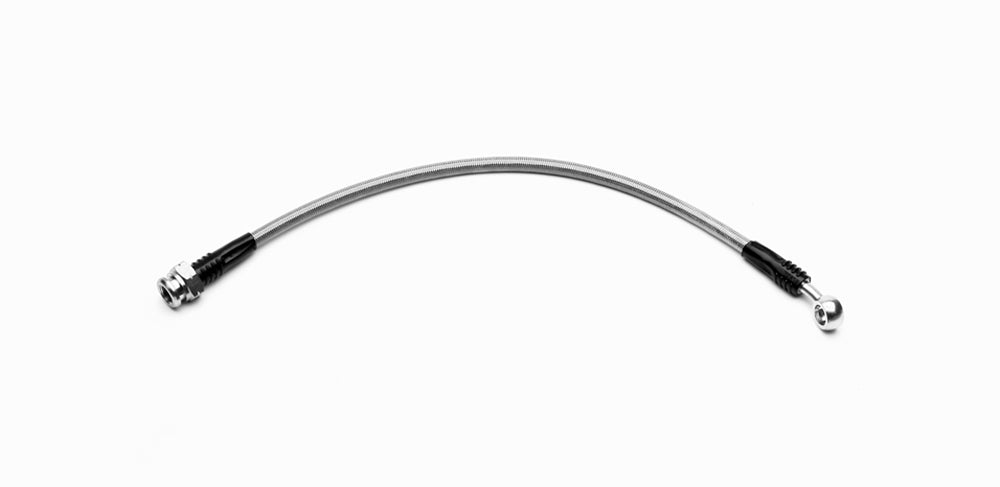

This C4 front flexline uses a 30-degree banjo block at the caliper end of the 15-inch hose. Its integral metric socket connects directly to the matching bubble-flare chassis line. The manufacturer, Wilwood Engineering, was established by Bill Wood in 1977 and is based in Camarillo, California. It designs and builds disc brake systems with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications require components selected for the complete braking system.
Technical Details
- Manufacturer part number: 220-8515
- Component: Individual braided brake hose
- Hose length (inches): 15.00
- Line or fitting size: -3
- Hose inlet connection: M10 bubble flare Female
- Hose inlet angle: Straight
- Hose outlet connection: M10 Banjo
- Hose outlet angle: 30 Degree
- Hose quantity: 1
- Listed weight: 0.500 lb
Fitment & Compatibility
Wilwood's current detail and kit note both specify 30 degrees, correcting the 45-degree wording in older product names. Check the Chevrolet Corvette C4 front application and obtain the correct banjo sealing hardware for this single hose.
Manufacturer Documents
With more than 20 years of experience, PMB Performance can assist with brake-component selection. Provide the vehicle and installed brake details so the connection and mounting requirements can be checked together.
