Product details

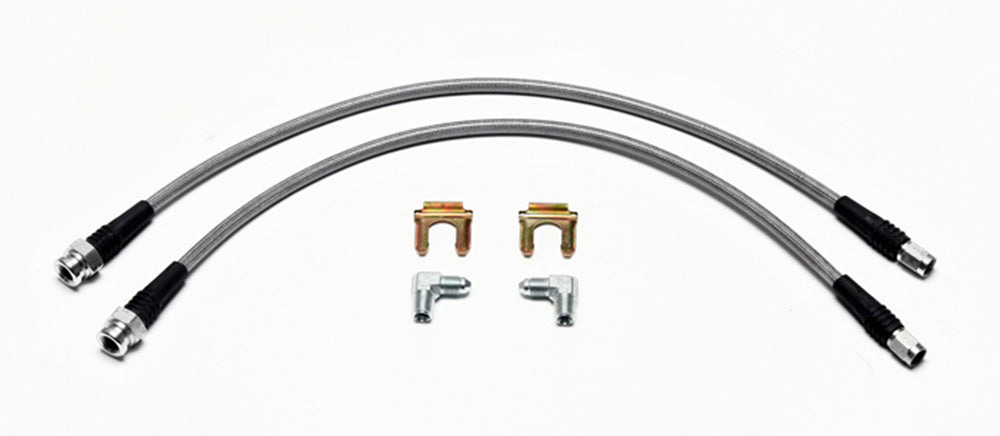

These Golf front flexlines incorporate the metric bubble-flare chassis connection into the hose ends. Wilwood provides 19-inch lines and separate NPT elbows for the conversion calipers. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc brake systems and supplies master cylinders, calipers, brake rotors, valves, fittings and lines for motorsport, street-performance and specialized installations. Select each component around the complete system’s requirements.
Technical Details
- Manufacturer part number: 220-8339
- Component: Brake flexline and fitting kit
- Hose length (inches): 19.00
- Line or fitting size: -3
- Hose inlet connection: M10 bubble flare Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
The product identity references the Volkswagen Golf Mk4 from the mid-1999 change through 2003, while the current hose page gives no complete year range. Confirm chassis generation, exact brake kit and socket seating rather than selecting by registration year alone.
Manufacturer Documents
PMB Performance can help compare the fitting arrangement with your brake system, drawing on over 20 years of experience. Include the vehicle details and clear views of the mating hardware.
