Product details

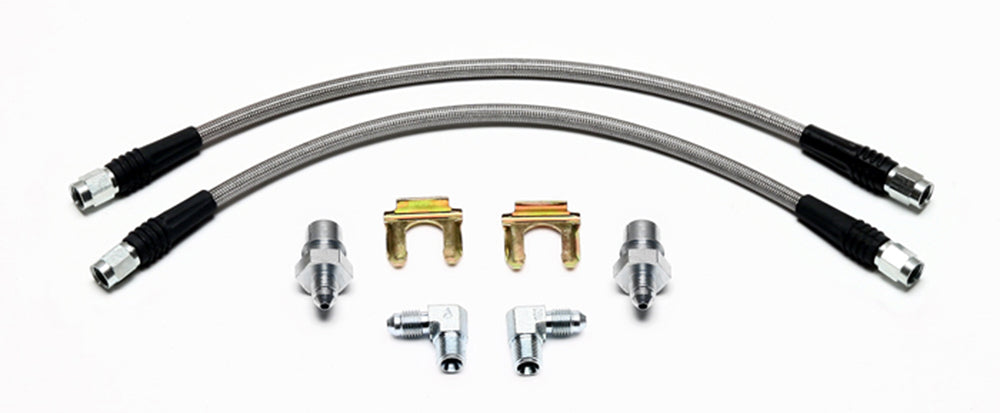

The C4 conversion hose package uses metric bubble-flare chassis adapters and separate NPT caliper elbows. Wilwood's current kit note identifies both front and earlier rear installations for this 14-inch pair. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and builds disc brake systems for motorsport, street-performance and specialized uses, including calipers, rotors, master cylinders, valves, fittings and brake lines. Each part must match the requirements of the whole braking arrangement.
Technical Details
- Manufacturer part number: 220-8338
- Component: Brake flexline and fitting kit
- Hose length (inches): 14.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6890
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
The manufacturer's stated ranges are front 1985–1996 and rear 1984–1987 Chevrolet Corvette C4 conversions. Confirm the exact kit and caliper inlet, because the front-only heading does not describe the full note and neither range establishes original-caliper replacement fitment.
Manufacturer Documents
PMB Performance draws on over 20 years of brake and parts experience. Clear photographs of the connections and the installed brake package are useful when confirming this component.
