Product details

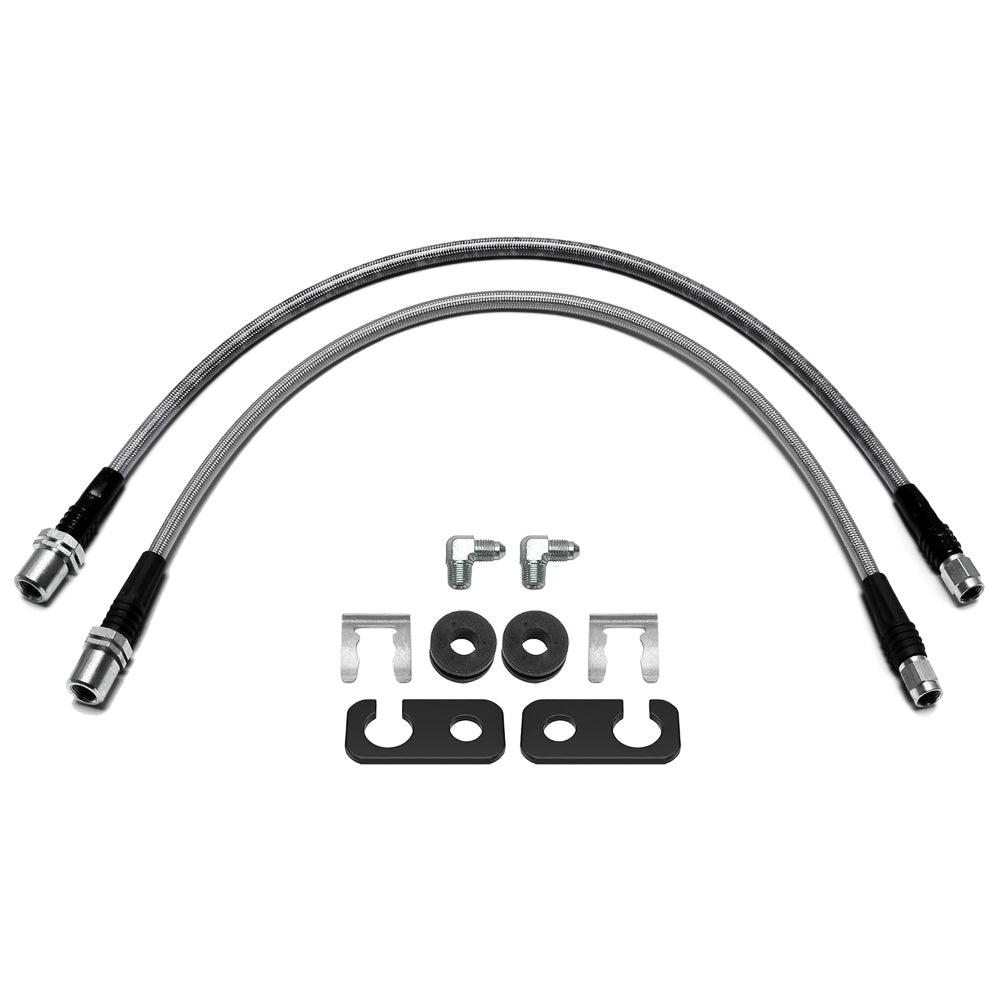

Deep metric inverted-flare sockets are integrated into this Scion front hose arrangement. Wilwood pairs the 20-inch lines with mounting brackets and right-angle caliper adapters for the specified conversion. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.
Technical Details
- Manufacturer part number: 220-8336
- Component: Brake flexline and fitting kit
- Hose length (inches): 20.00
- Line or fitting size: -3
- Hose inlet connection: M10 inverted flare Female (Deep)
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-8361
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
Verify the individual Scion xA, xB or tC brake kit and production year. The current page's 2003–2005 note is not a complete shared range for those models, and the older open-ended application should not be treated as coverage of every later Scion.
