Product details

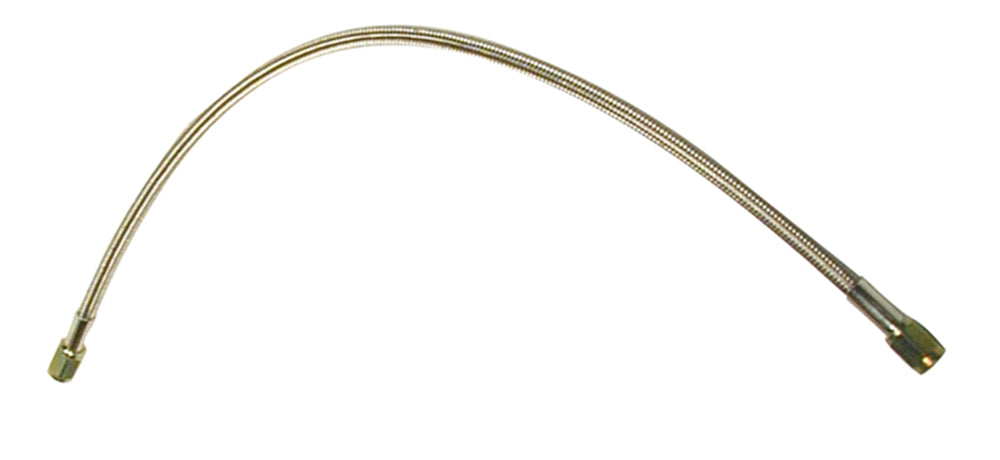

This 40-inch Wilwood hose provides a long flexible connection between matching -3 fittings. Both ends are straight, allowing the installer to choose the mating adapter geometry independently. Based in Camarillo, California, Wilwood Engineering was founded by Bill Wood in 1977. Its work includes the design and manufacture of disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component choice must suit the complete brake system, including its intended use and mating hardware.
Technical Details
- Manufacturer part number: 220-8317
- Component: Individual braided brake hose
- Hose length (inches): 40.00
- Line or fitting size: -3
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Hose quantity: 1
- Listed weight: 0.500 lb
Fitment & Compatibility
Trace the actual route and provide suitable retention so the long hose cannot rub or hang into moving components. This single universal flexline carries no model-specific fitment or chassis mounting hardware.
Manufacturer Documents
If the brake system has been modified, contact PMB Performance with the installed component references and routing dimensions. We have more than 20 years of experience helping match brake parts to their applications.
