Product details

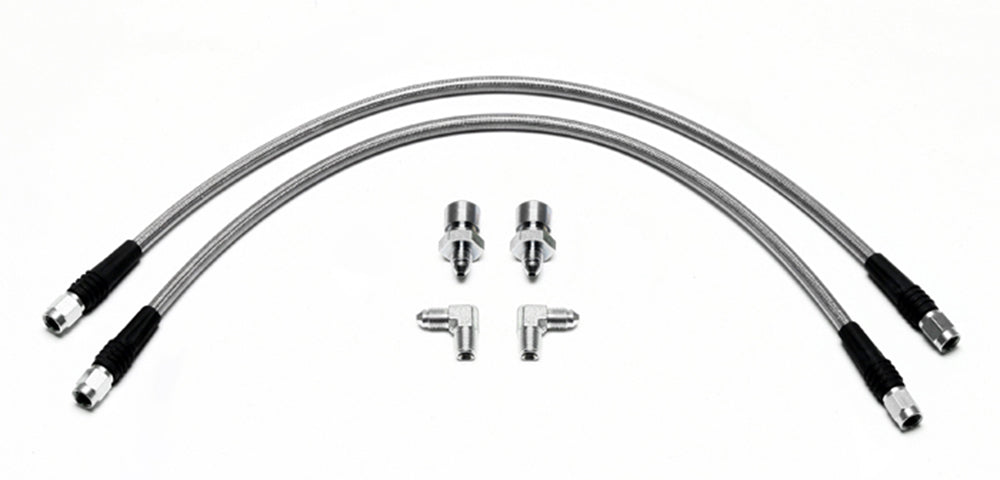

Wilwood identifies this 16-inch flexline pair for the Mitsubishi Eclipse front conversion. Separate chassis adapters retain the metric inverted-flare hard-line connection while NPT elbows serve the calipers. Bill Wood founded Wilwood Engineering in 1977. From its base in Camarillo, California, Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized use, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Compatibility with the complete brake system governs selection of the individual components.
Technical Details
- Manufacturer part number: 220-8293
- Component: Brake flexline and fitting kit
- Hose length (inches): 16.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6413
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
The product page does not provide a full Eclipse year or trim range. Confirm the vehicle generation and installed Wilwood front kit, then compare the hose route and M10 x 1 inverted-flare seats before ordering.
Manufacturer Documents
Use PMB Performance's 20-plus years of experience when checking uncertain fitment. Identify the actual hose ends, port seats and brake package as well as the vehicle before ordering.
