Product details

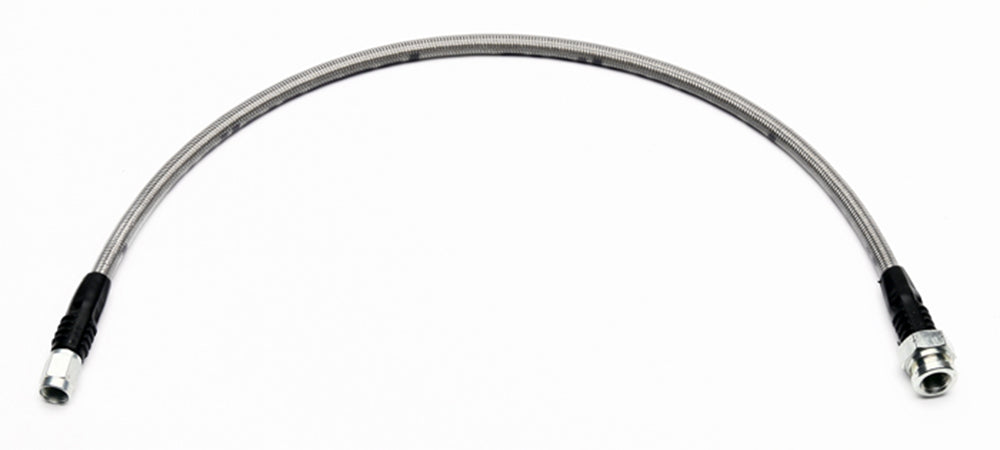

The 17-inch overall length suits installations needing an integrated metric chassis socket without the extra reach of longer flexlines. Wilwood uses a straight female -3 fitting at the opposite end of this single hose. The Wilwood range brings together calipers, brake rotors, master cylinders, valves, fittings and brake lines for complete-system component selection. Wilwood Engineering was founded by Bill Wood in 1977, is based in Camarillo, California, and designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 220-8223
- Component: Individual braided brake hose
- Hose length (inches): 17.00
- Line or fitting size: -3
- Hose inlet connection: M10 bubble flare Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Hose quantity: 1
- Listed weight: 0.500 lb
Fitment & Compatibility
Measure the complete route through steering and suspension movement, then match the M10 x 1 bubble-flare seat. The hose's metric thread is not an inverted-flare interface, and the required caliper adapter depends on the actual brake system.
Manufacturer Documents
For a fitment check, give PMB Performance the vehicle year, brake configuration and details of both mating connections. Our team brings more than 20 years of parts and brake-system experience to the comparison.
