Product details

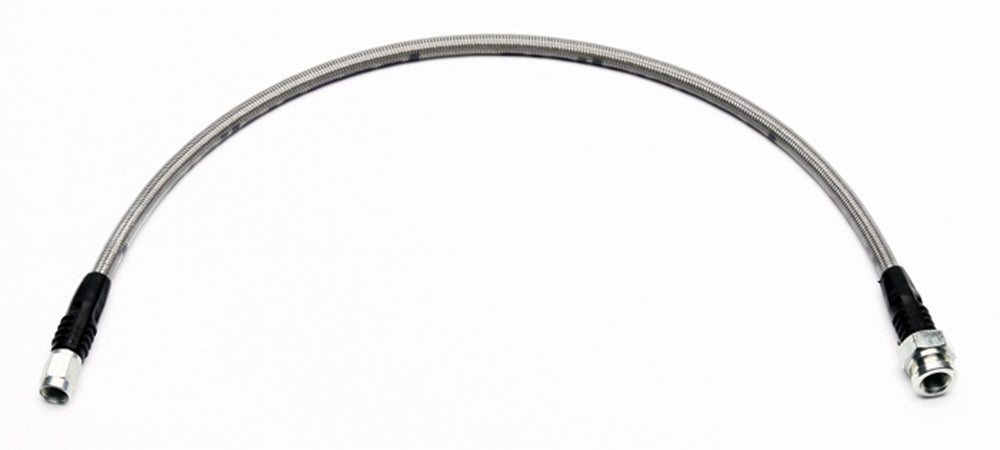

This Wilwood hose incorporates the M10 x 1 bubble-flare chassis interface at one end of a 19-inch flexible line. The straight female -3 outlet connects to a separately selected brake-system fitting. Wilwood Engineering was founded in 1977 by Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Each part is selected to match the complete brake system.
Technical Details
- Manufacturer part number: 220-8222
- Component: Individual braided brake hose
- Hose length (inches): 19.00
- Line or fitting size: -3
- Hose inlet connection: M10 bubble flare Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Hose quantity: 1
- Listed weight: 0.500 lb
Fitment & Compatibility
Confirm both mating seats and the actual required overall length. This universal hose does not include the caliper adapter or establish an axle application; the installation must provide correct support and freedom from twisting.
Manufacturer Documents
PMB Performance can help compare the fitting arrangement with your brake system, drawing on over 20 years of experience. Include the vehicle details and clear views of the mating hardware.
