Product details

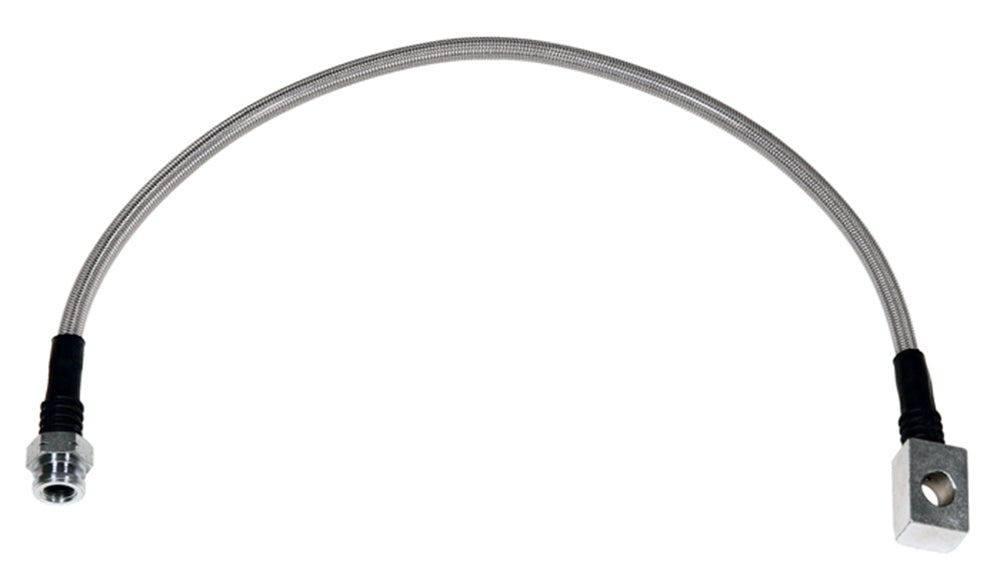

This individual C5 front flexline carries the metric chassis socket and banjo block as part of the hose assembly. Its 18.75-inch overall length matches the specified front original-caliper hose configuration. Since its founding by Bill Wood in 1977, Wilwood Engineering has developed a range serving motorsport, street-performance and specialized brake applications. Based in Camarillo, California, it designs and manufactures disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines. Each component should be selected for compatibility with the complete braking system.
Technical Details
- Manufacturer part number: 220-8215
- Component: Individual braided brake hose
- Hose length (inches): 18.75
- Line or fitting size: -3
- Hose inlet connection: M10 bubble flare Female
- Hose inlet angle: Straight
- Hose outlet connection: M10 Banjo
- Hose outlet angle: 12 Degree
- Hose quantity: 1
- Listed weight: 0.500 lb
Fitment & Compatibility
Verify the Chevrolet Corvette C5 front connection and banjo orientation against the installed brake package. This is one hose, with no separate bolt-and-washer kit shown or listed; obtain the correct sealing hardware as required by the installation.
Manufacturer Documents
With more than 20 years of experience, PMB Performance can assist with brake-component selection. Provide the vehicle and installed brake details so the connection and mounting requirements can be checked together.
