Product details

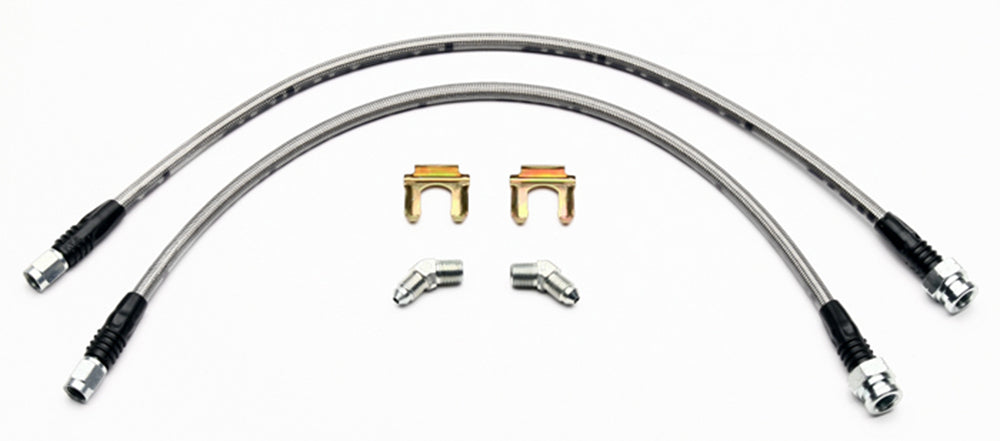

A 45-degree adapter directs each rear C5 flexline toward the Wilwood conversion caliper. The 19-inch hoses have integrated bubble-flare chassis ends, reducing the number of separate chassis-side connections. The manufacturer is Wilwood Engineering, established by Bill Wood in 1977 and based in Camarillo, California. Wilwood designs and manufactures disc brake systems for motorsport, street-performance and specialized applications, supplying calipers, brake rotors, master cylinders, valves, fittings and brake lines whose selection must suit the complete brake system.
Technical Details
- Manufacturer part number: 220-8177
- Component: Brake flexline and fitting kit
- Hose length (inches): 19.00
- Line or fitting size: -3
- Hose inlet connection: M10 bubble flare Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 45 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6412
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Match the 1997–2004 Chevrolet Corvette C5 rear conversion kit and check hose clearance around the suspension. This pair uses NPT caliper adapters rather than the banjo blocks of the original-caliper rear hose set.
Manufacturer Documents
If the brake system has been modified, contact PMB Performance with the installed component references and routing dimensions. We have more than 20 years of experience helping match brake parts to their applications.
