Wilwood Front OE-Caliper Brake Hose Kit for Chevrolet Corvette C5 (1997–2004), 18.75-Inch

This Wilwood C5 front hose kit is intended for the original-caliper connection rather than an NPT conversion adapter. The 18.75-inch lines combine metric bubble-flare chassis ends with integrated 12-degree banjo blocks. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its component range, with individual parts chosen to match the complete system rather than considered in isolation.

Technical Details

• Manufacturer part number: 220-8021
• Component: Brake flexline and fitting kit
• Hose length (inches): 18.75
• Line or fitting size: -3
• Hose inlet connection: M10 bubble flare Female
• Hose inlet angle: Straight
• Hose outlet connection: M10 Banjo
• Hose outlet angle: 12 Degree
• Chassis retaining clip reference: 300-15780
• Hose quantity: 2
• Listed weight: 1.000 lb

Fitment & Compatibility

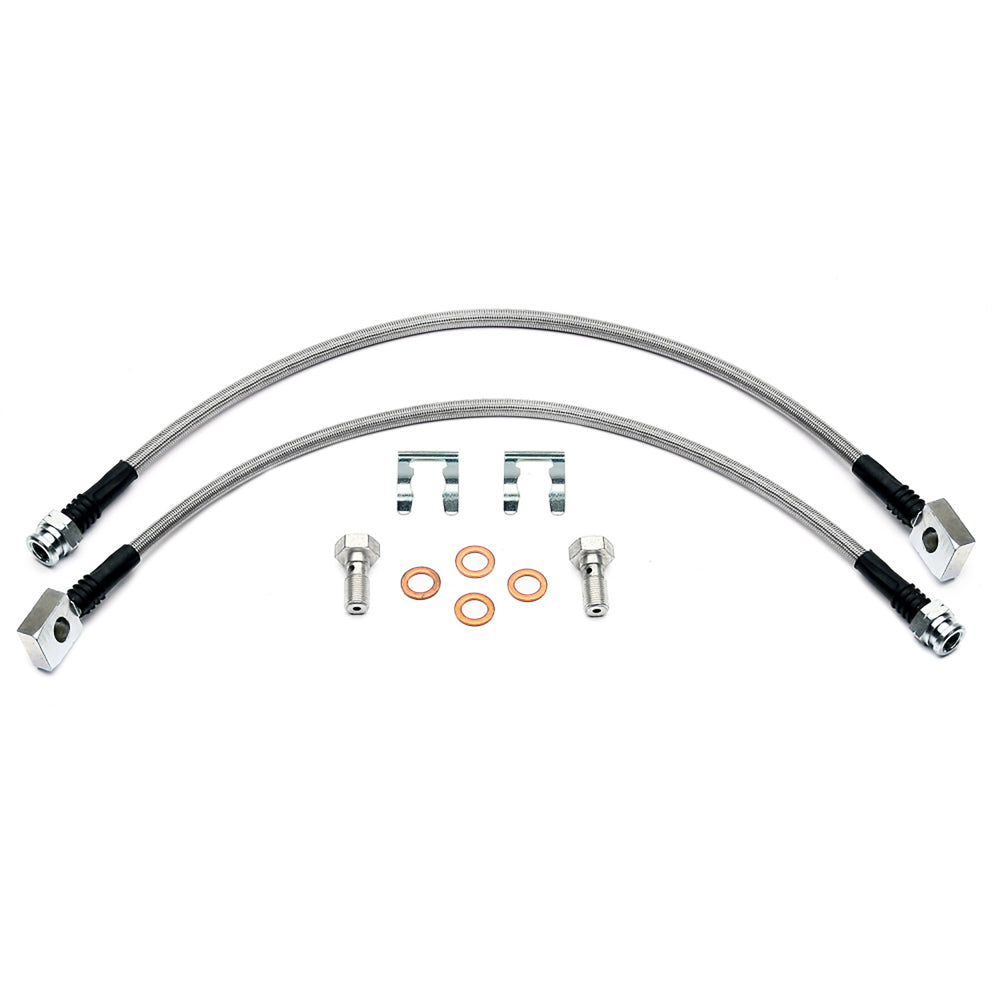

Confirm the 1997–2004 Chevrolet Corvette C5 front caliper and chassis interface. The set includes two hoses with banjo hardware; do not substitute it for a Wilwood conversion kit that requires a different caliper inlet or hose length.

Manufacturer Documents

• Wilwood product specifications
• Wilwood flexline fitting guide

For a fitment check, give PMB Performance the vehicle year, brake configuration and details of both mating connections. Our team brings more than 20 years of parts and brake-system experience to the comparison.
