Product details

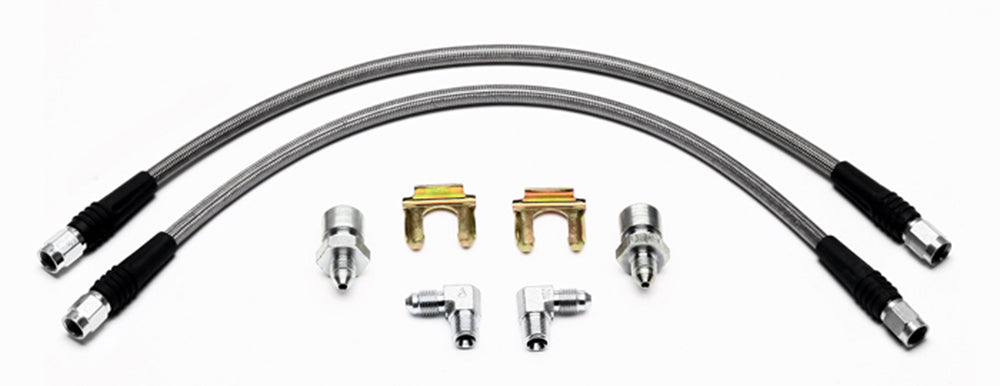

Wilwood identifies this imperial flexline package with the 1955–1957 Chevrolet front conversion layout. The hoses use straight -3 ends and separate adapters to connect the original-style hard-line interface to NPT calipers. Wilwood Engineering's range covers calipers, brake rotors, master cylinders, valves, fittings and brake lines, selected to meet the needs of a complete brake system. The company was founded by Bill Wood in 1977 and is based in Camarillo, California, designing and manufacturing disc brake systems for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 220-7699
- Component: Brake flexline and fitting kit
- Hose length (inches): 16.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to 3/8-24 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-13124
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
Match the installed Chevrolet front brake kit, spindle layout and 3/8-24 inverted-flare chassis connection. Universal applications must meet the same hose-length and mounting requirements; model year alone does not establish compatibility after a brake conversion.
