Product details

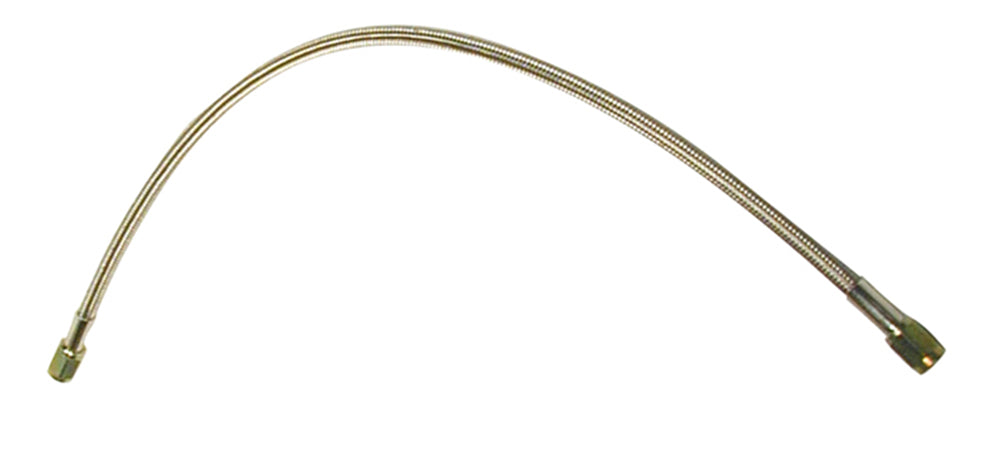

This individual Wilwood hose spans a 16-inch overall route using straight female fittings at both ends. Its flexible braided section connects existing brake-system adapters without introducing an angled hose end. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Those components need to be selected together around the complete brake system's requirements.
Technical Details
- Manufacturer part number: 220-7686
- Component: Individual braided brake hose
- Hose length (inches): 16.00
- Line or fitting size: -3
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Hose quantity: 1
- Listed weight: 0.500 lb
Fitment & Compatibility
Select by the complete hose path and -3 flare connections. A 16-inch measurement is not a vehicle fitment specification; verify travel and retention with the actual caliper, chassis and suspension arrangement.
Manufacturer Documents
PMB Performance draws on over 20 years of brake and parts experience. Clear photographs of the connections and the installed brake package are useful when confirming this component.
