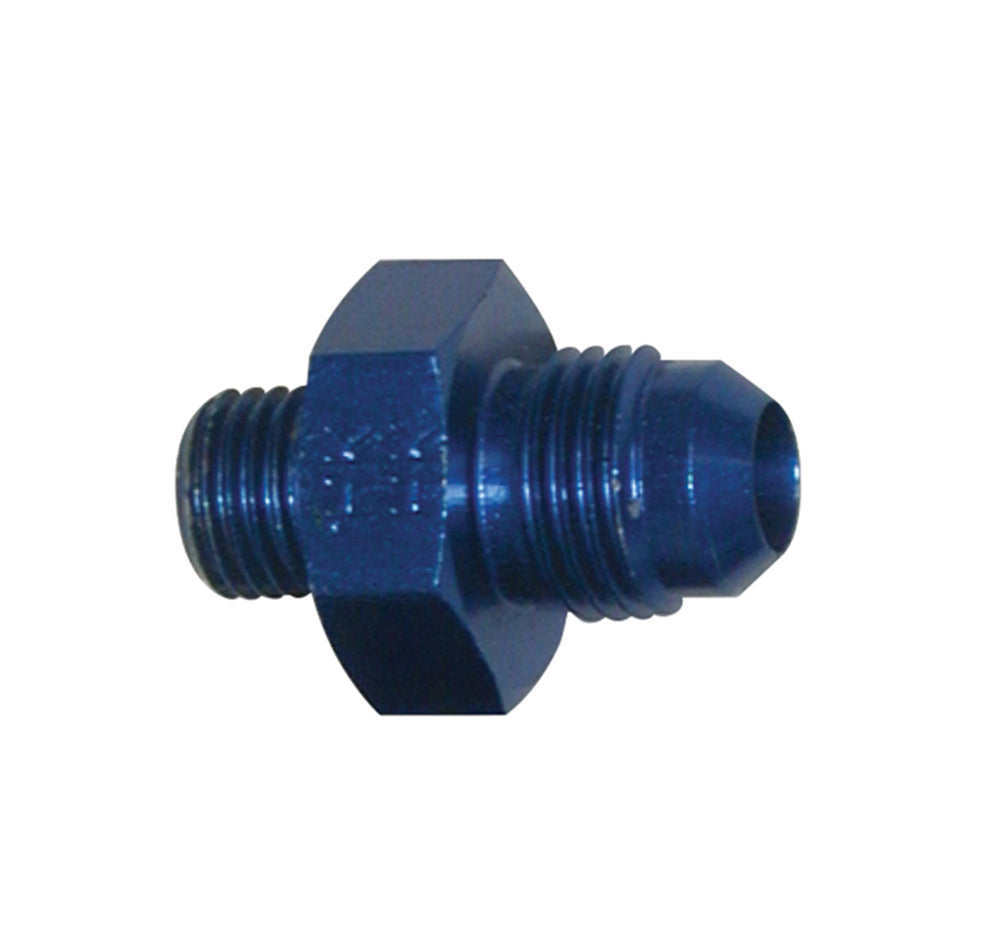

Wilwood GS Master Cylinder Inlet Adapter, 7/16-20 Male to -6 JIC, Aluminum

This aluminum inlet adapter presents a -6 male flare at the GS remote master cylinder. The cylinder-side thread is 7/16-20, allowing the appropriate reservoir plumbing to be selected independently of the master cylinder body. For Wilwood Engineering, component selection forms part of matching a complete brake system to its application. Founded in 1977 by Bill Wood and based in Camarillo, California, the company designs and manufactures disc brake systems and a range of calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.

Technical Details

• Manufacturer part number: 220-7537
• Component: Master cylinder or reservoir fitting
• Connection specification: -6 to 7/16-20
• Package quantity: 1

Fitment & Compatibility

Confirm the GS inlet specification and its required seal before installation. This reservoir-feed fitting is larger than a -3 pressure-hose adapter and should be matched to the corresponding -6 line or swivel fitting.

Manufacturer Documents

• Wilwood product specifications
• Wilwood flexline fitting guide

With more than 20 years of experience, PMB Performance can assist with brake-component selection. Provide the vehicle and installed brake details so the connection and mounting requirements can be checked together.
