Product details

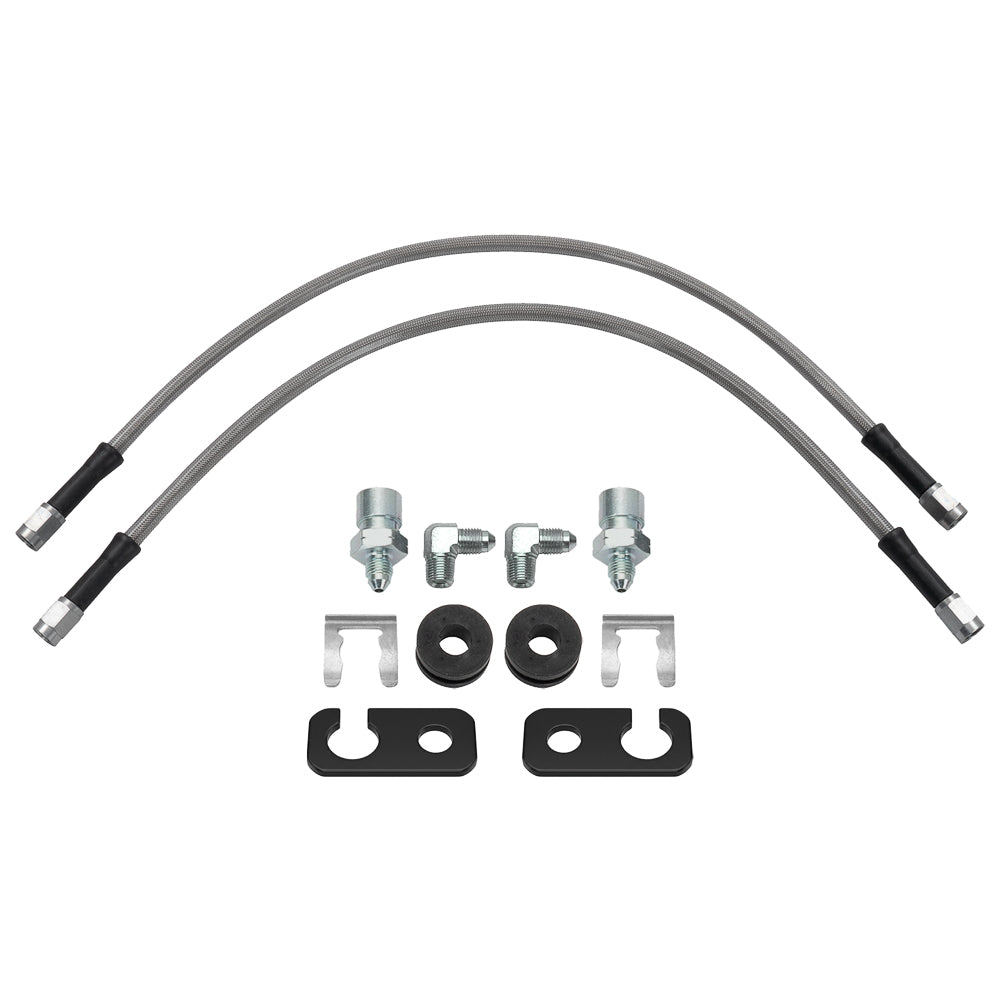

This WRX front flexline package includes brackets to support the chassis connections. Its 18-inch hoses have straight ends, with metric inverted-flare adapters on the hard-line side and NPT elbows at the calipers. Since its founding by Bill Wood in 1977, Wilwood Engineering has focused on disc brake system design and manufacturing. Based in Camarillo, California, it offers calipers, rotors, brake lines, master cylinders, fittings and valves for motorsport, street-performance and specialized installations. Choose components to satisfy the requirements of the entire braking system.
Technical Details
- Manufacturer part number: 220-7009
- Component: Brake flexline and fitting kit
- Hose length (inches): 18.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6413
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-8361
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
Verify the Subaru WRX's exact front brake conversion and chassis seat. Earlier product naming refers to 1999–2003, while the current page gives no complete year range; market and generation differences must be checked rather than assuming every WRX uses this route.
Manufacturer Documents
With more than 20 years of experience, PMB Performance can assist with brake-component selection. Provide the vehicle and installed brake details so the connection and mounting requirements can be checked together.
