Product details

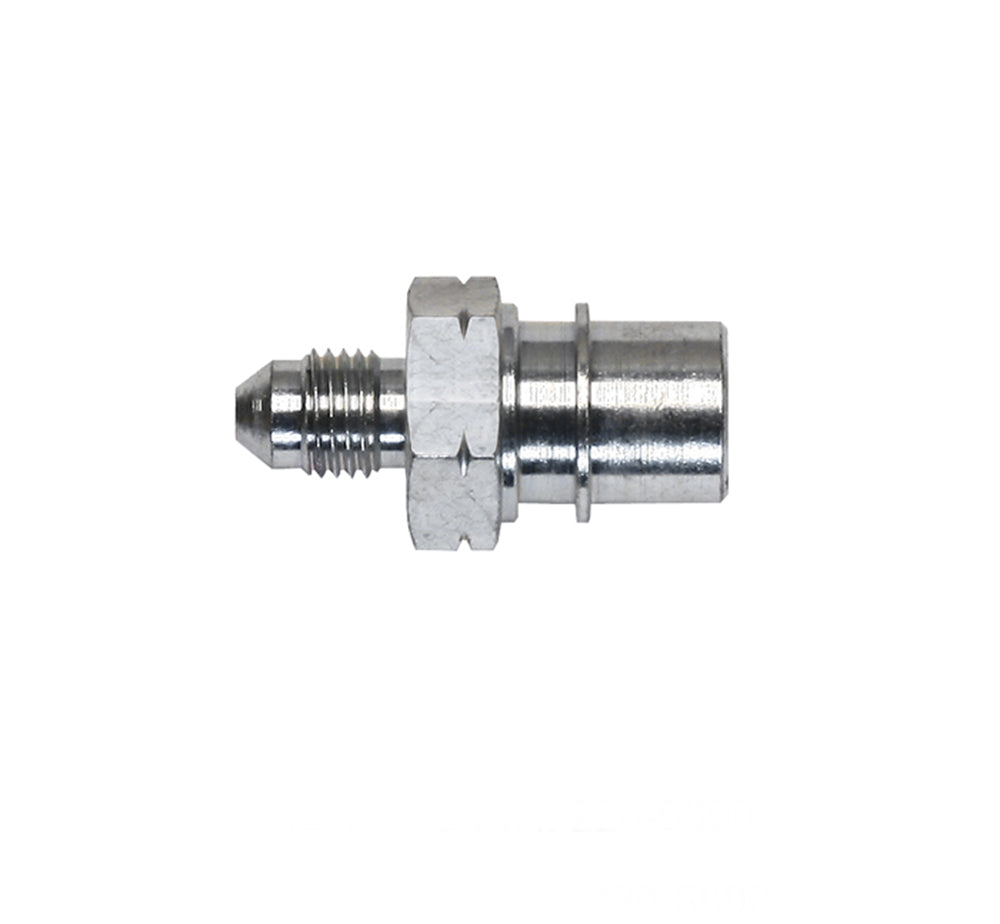

The bubble-flare socket is the defining interface on this Wilwood chassis adapter. It couples an M10 x 1 hard line to a male -3 hose connection using a zinc-plated steel body. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc braking systems and components, including calipers, master cylinders, brake rotors, fittings, valves and brake lines. Its motorsport, specialized and street-performance range requires individual parts matched to the complete braking arrangement.
Technical Details
- Manufacturer part number: 220-6890
- Component: Chassis Fitting
- Hose-side size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Package quantity: 1
- Material/finish: Zinc-plated steel
Fitment & Compatibility
Confirm that the hard line ends in a bubble flare rather than an inverted flare. Both may use M10 x 1 threads, but the sealing surfaces differ; verify bracket support and retaining-clip engagement as well.
Manufacturer Documents
PMB Performance has over 20 years of experience with brake components and fitment. Send the vehicle details, installed brake kit and connection measurements if you need help choosing the correct plumbing.
