Product details

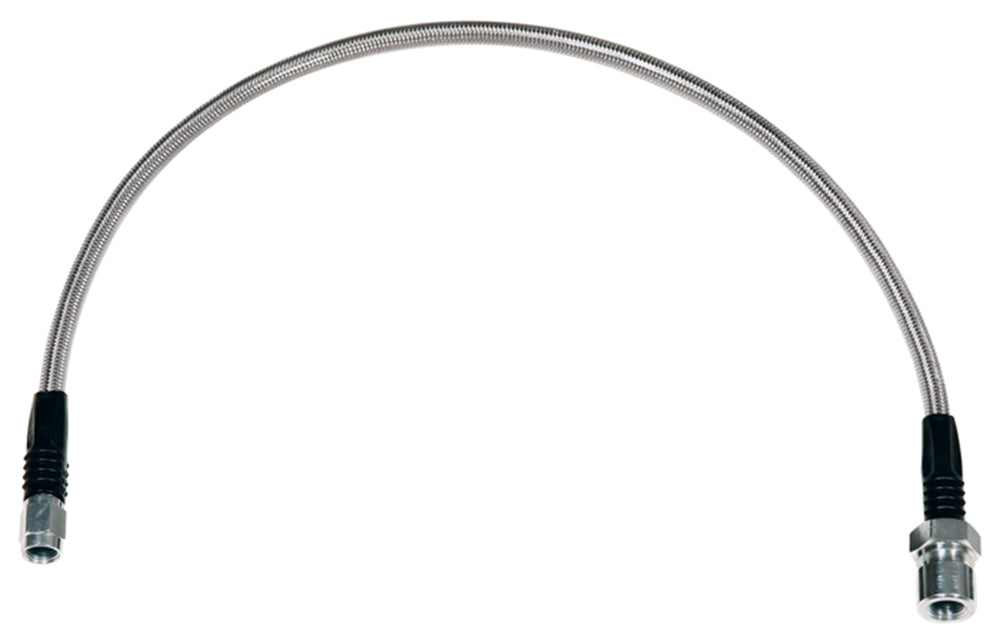

This single flexline incorporates the metric bubble-flare chassis socket directly into one end. The other end is a straight female -3 connection, eliminating the need for a separate chassis adapter where this exact interface is required. Wilwood Engineering’s work covers the design and manufacture of disc brake systems for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977 in a business now based in Camarillo, California. Its calipers, master cylinders, brake rotors, brake lines, valves and fittings must be selected around the complete system.
Technical Details
- Manufacturer part number: 220-6861
- Component: Individual braided brake hose
- Hose length (inches): 20.00
- Line or fitting size: -3
- Hose inlet connection: M10 bubble flare Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Hose quantity: 1
- Listed weight: 0.500 lb
Fitment & Compatibility
Match the M10 x 1 bubble-flare connection, 20-inch overall length and support arrangement. An inverted-flare hard line with the same nominal thread does not have the same seat, and no vehicle-specific or axle-specific fitment is established by this universal hose.
Manufacturer Documents
Use PMB Performance's 20-plus years of experience when checking uncertain fitment. Identify the actual hose ends, port seats and brake package as well as the vehicle before ordering.
