Product details

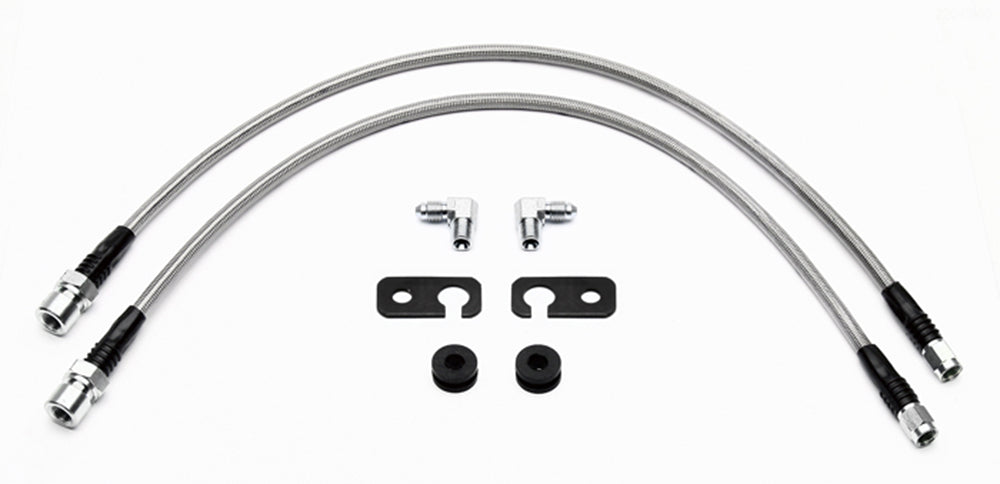

The integrated M10 bubble-flare chassis ends distinguish this hose set from earlier Civic inverted-flare kits. Wilwood supplies 22-inch hoses, support brackets and NPT caliper elbows for the specified front conversions. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems, with calipers, brake rotors, master cylinders, fittings, valves and lines serving motorsport, street-performance and specialized uses. Select individual parts to meet the needs of the complete brake system.
Technical Details
- Manufacturer part number: 220-6860
- Component: Brake flexline and fitting kit
- Hose length (inches): 22.00
- Line or fitting size: -3
- Hose inlet connection: M10 bubble flare Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Line support reference: 250-8361
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
The exact hose page identifies Civic 262 mm original-rotor applications from 2001 onward, and Wilwood DS-1559 identifies this hose for 2002–2006 Acura RSX five-lug front installations. Match the actual kit, year, hub configuration and bubble-flare line seat; this is not a universal Honda or Acura hose set.
Manufacturer Documents
- Wilwood product specifications
- Wilwood flexline fitting guide
- Wilwood application and installation reference
- Wilwood application and installation reference
For a fitment check, give PMB Performance the vehicle year, brake configuration and details of both mating connections. Our team brings more than 20 years of parts and brake-system experience to the comparison.
