Product details

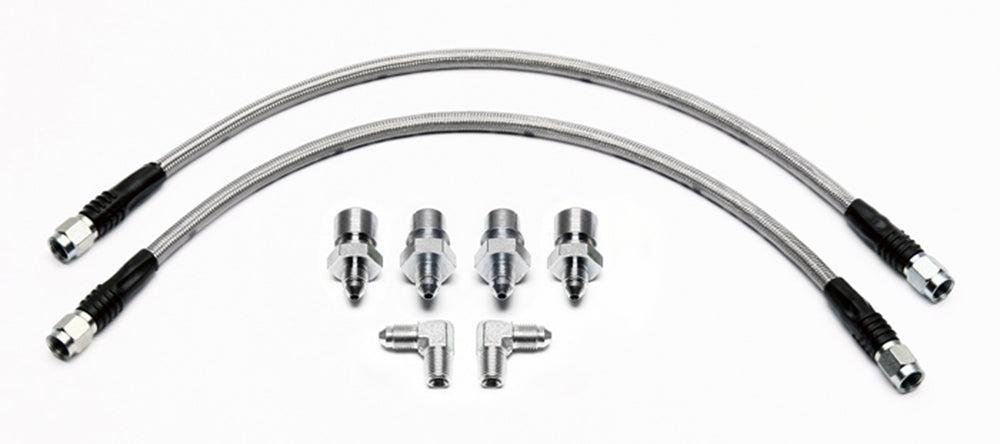

Alternate chassis adapters give this Wilwood hose package both metric bubble-flare and imperial inverted-flare connection options. The 18-inch straight-ended hoses use separate 90-degree NPT fittings at the calipers. The manufacturer, Wilwood Engineering, was established by Bill Wood in 1977 and is based in Camarillo, California. It designs and builds disc brake systems with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications require components selected for the complete braking system.
Technical Details
- Manufacturer part number: 220-6856
- Component: Brake flexline and fitting kit
- Hose length (inches): 18.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare or 3/8-24 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6890 / 220-13124
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
The product identity associates the kit with 1993–2002 Chevrolet Camaro rear Dynalite conversions, while the current page describes universal use. Confirm the actual rear kit, then choose M10 x 1 bubble flare or 3/8-24 inverted flare to match the hard line rather than mixing the seats.
Manufacturer Documents
PMB Performance can help compare the fitting arrangement with your brake system, drawing on over 20 years of experience. Include the vehicle details and clear views of the mating hardware.
