Product details
This Wilwood Camaro front hose set connects metric bubble-flare hard lines to the specified conversion calipers. The 14-inch hoses have angled ends, while the written caliper-fitting specification calls for a straight NPT adapter. Wilwood Engineering has designed and manufactured disc brake systems since Bill Wood founded it in 1977. Its Camarillo, California operation supplies calipers, master cylinders, brake rotors, valves, fittings and lines for specialized, street-performance and motorsport applications. Each component must be chosen to match the complete brake system.
Technical Details
- Manufacturer part number: 220-6746
- Component: Brake flexline and fitting kit
- Hose length (inches): 14.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6956
- Chassis adapter reference: 220-6890
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility

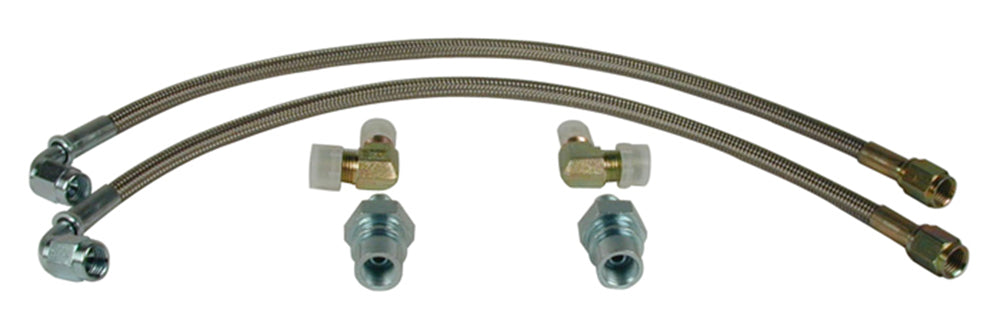

Confirm the 1993–2002 Chevrolet Camaro front brake kit and its actual caliper inlet routing. The product photo shows elbow-style loose fittings even though the detail table specifies straight adapters, so verify the delivered fitting geometry before installation.
Manufacturer Documents
PMB Performance draws on over 20 years of brake and parts experience. Clear photographs of the connections and the installed brake package are useful when confirming this component.
