Product details

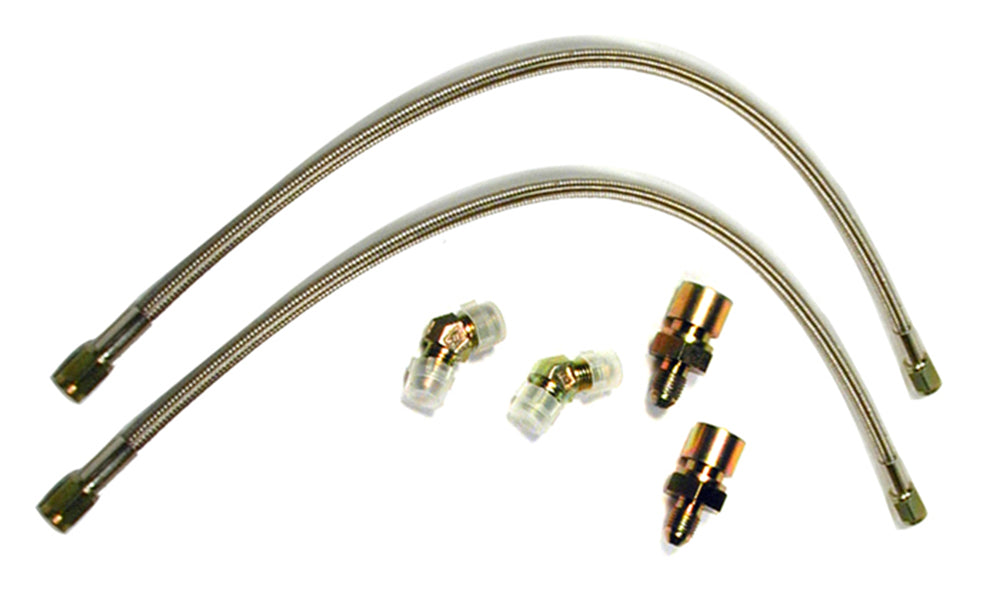

The specified Mustang front installation uses 7/16-24 inverted-flare chassis fittings and 45-degree caliper adapters. Wilwood supplies a pair of straight-ended 18-inch hoses for that arrangement. Bill Wood’s 1977 founding of Wilwood Engineering began a disc brake design and manufacturing business based in Camarillo, California. The range includes master cylinders, calipers, rotors, brake lines, valves and fittings for motorsport, street-performance and specialized vehicles. Component selection must consider the complete braking arrangement.
Technical Details
- Manufacturer part number: 220-6471
- Component: Brake flexline and fitting kit
- Hose length (inches): 18.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to 7/16-24 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 45 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6412
- Chassis adapter reference: 220-6457
- Hose quantity: 2
- Listed weight: 0.800 lb
Fitment & Compatibility
The current application note identifies 1987–1993 Ford Mustang front kits, while older product naming began in 1986. Confirm the exact kit before including an earlier car; universal use also depends on the same thread, seat and routing requirements.
Manufacturer Documents
With more than 20 years of experience, PMB Performance can assist with brake-component selection. Provide the vehicle and installed brake details so the connection and mounting requirements can be checked together.
