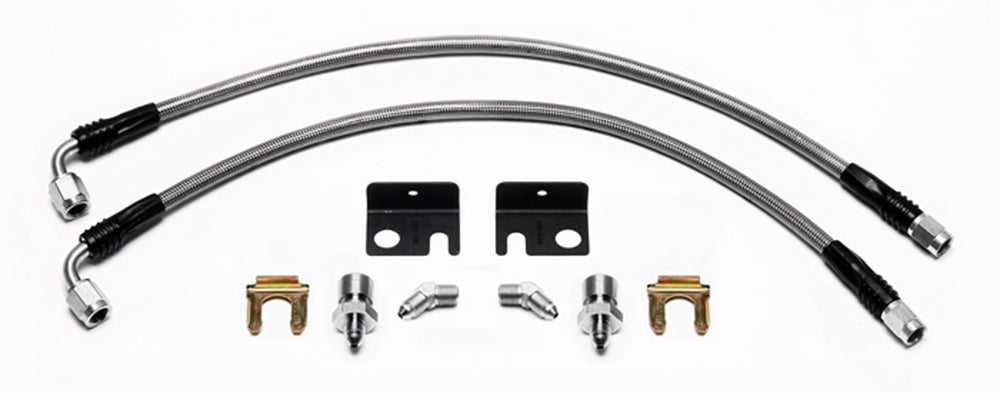

Wilwood Front Brake Hose Kit for Chrysler PT Cruiser / Dodge Neon SRT-4 Conversions

This Wilwood hose kit joins the PT Cruiser or Neon SRT-4 chassis plumbing to specified front conversion calipers. The 16-inch hoses use angled ends, dedicated brackets and 45-degree NPT caliper adapters. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc brake systems and supplies master cylinders, calipers, brake rotors, valves, fittings and lines for motorsport, street-performance and specialized installations. Select each component around the complete system’s requirements.

Technical Details

• Manufacturer part number: 220-6428
• Component: Brake flexline and fitting kit
• Hose length (inches): 16.00
• Line or fitting size: -3
• Chassis adapter connection: -3 to 3/8-24 inverted flare
• Hose inlet connection: -3 Female
• Hose inlet angle: Straight
• Hose outlet connection: -3 Female
• Hose outlet angle: 90 Degree
• Caliper adapter angle: 45 Degree
• Caliper connection: 1/8-27 NPT
• Caliper adapter reference: 220-6412
• Chassis adapter reference: 220-13124
• Chassis retaining clip reference: 300-15780
• Line support reference: 250-6405 / 250-6406
• Hose quantity: 2
• Listed weight: 1.000 lb

Fitment & Compatibility

The manufacturer identifies both Chrysler PT Cruiser and Dodge Neon SRT-4, with the older flyer naming 2000–2004 PT Cruiser and 2003–2004 SRT-4 applications. Confirm the vehicle's market/model year and exact front kit before extending those ranges; the chassis interface is 3/8-24 inverted flare.

Manufacturer Documents

• Wilwood product specifications
• Wilwood flexline fitting guide
• Wilwood application and installation reference

Use PMB Performance's 20-plus years of experience when checking uncertain fitment. Identify the actual hose ends, port seats and brake package as well as the vehicle before ordering.
