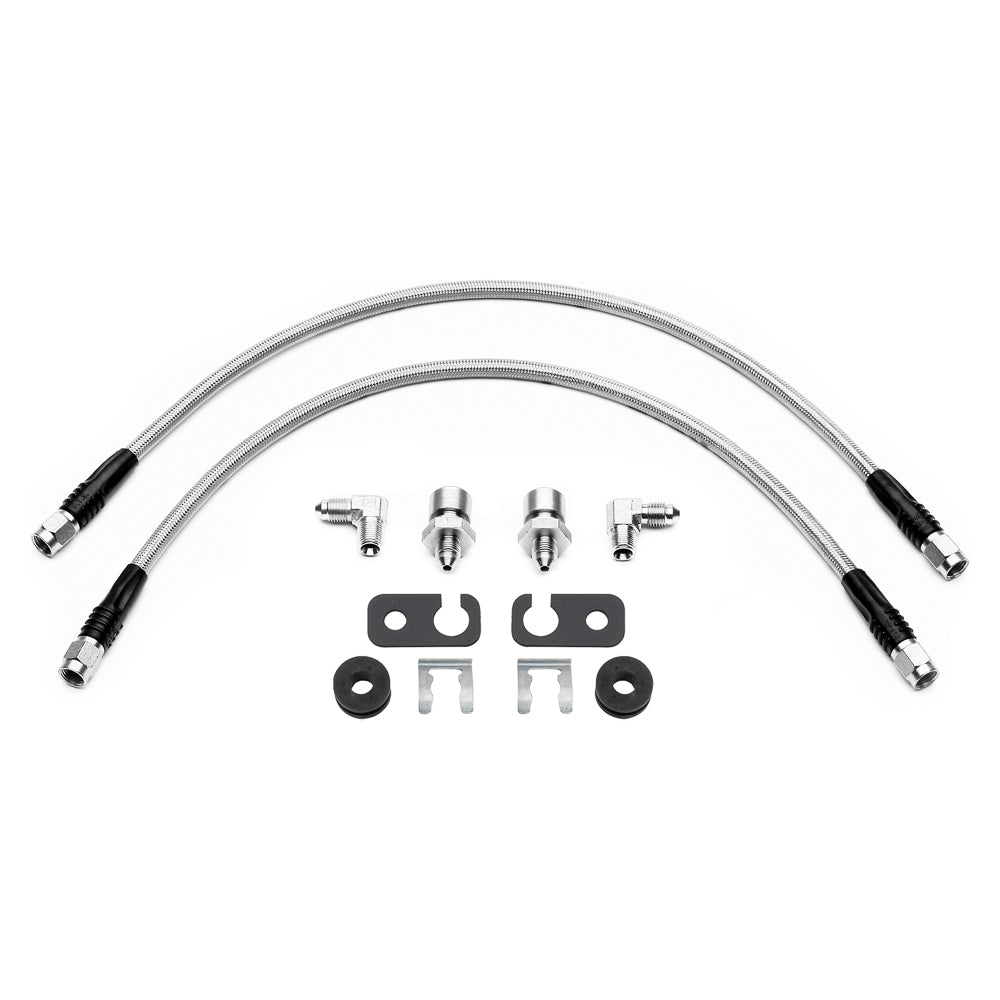

Wilwood Front 18-Inch Brake Hose Kit for Honda Civic / Civic Si and Acura Integra Conversions

Wilwood specifies this 18-inch flexline arrangement for Civic and Integra conversions associated with the 262 mm original rotor layout. Straight hose ends connect the chassis adapters to separate 90-degree caliper fittings. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and builds disc brake systems for motorsport, street-performance and specialized uses, including calipers, rotors, master cylinders, valves, fittings and brake lines. Each part must match the requirements of the whole braking arrangement.

Technical Details

• Manufacturer part number: 220-6420
• Component: Brake flexline and fitting kit
• Hose length (inches): 18.00
• Line or fitting size: -3
• Chassis adapter connection: -3 to M10 x 1 inverted flare
• Hose inlet connection: -3 Female
• Hose inlet angle: Straight
• Hose outlet connection: -3 Female
• Hose outlet angle: Straight
• Caliper adapter angle: 90 Degree
• Caliper connection: 1/8-27 NPT
• Caliper adapter reference: 220-13125
• Chassis adapter reference: 220-6413
• Chassis retaining clip reference: 300-15780
• Line support reference: 250-8361
• Hose quantity: 2
• Listed weight: 0.800 lb

Fitment & Compatibility

Verify the Honda Civic or Civic Si and Acura Integra year, original hub/spindle arrangement and Wilwood kit. Wilwood documentation separates earlier metric inverted-flare applications from later bubble-flare hose packages, so neither model name nor 262 mm rotor history alone establishes the correct hose.

Manufacturer Documents

• Wilwood product specifications
• Wilwood flexline fitting guide
• Wilwood application and installation reference
• Wilwood application and installation reference

For a fitment check, give PMB Performance the vehicle year, brake configuration and details of both mating connections. Our team brings more than 20 years of parts and brake-system experience to the comparison.
