Product details

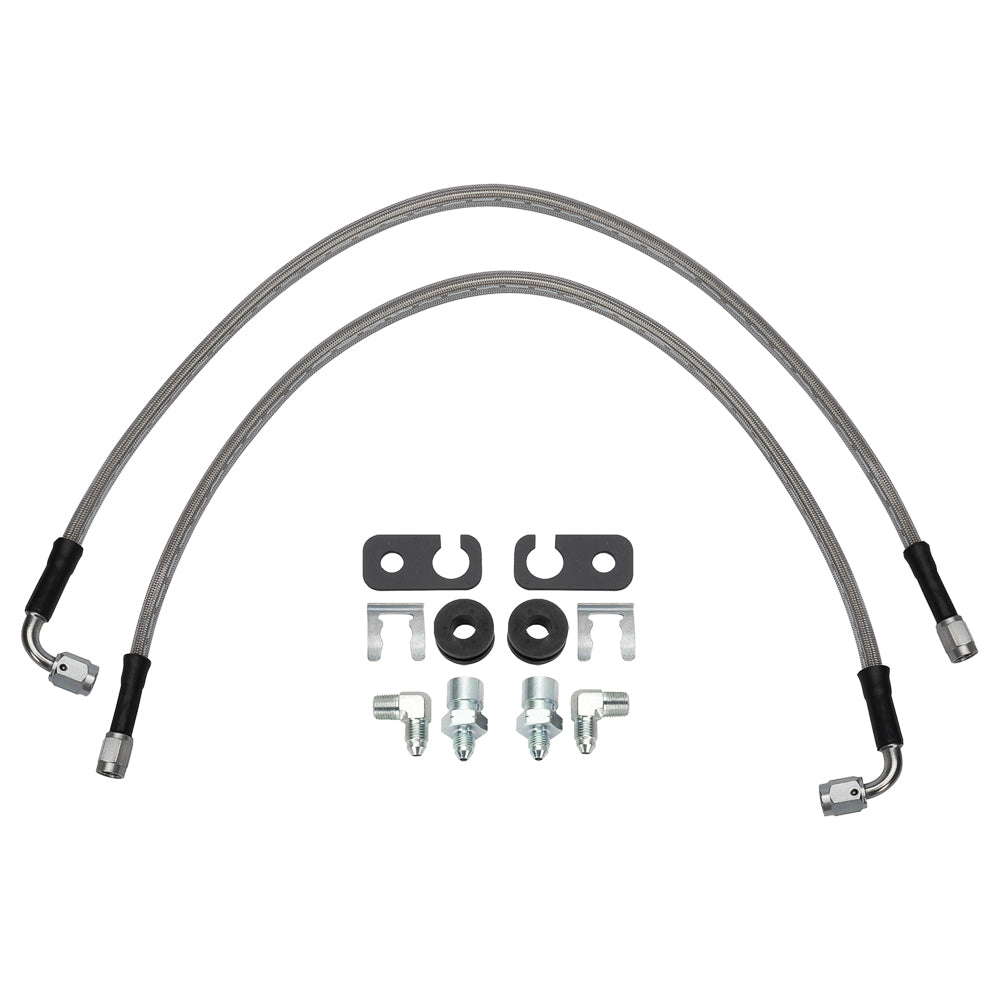

This Civic hose kit is identified by the 240 mm original-rotor application used to select the conversion. Its 22-inch hoses have angled ends and are supplied with chassis brackets, clips and NPT caliper elbows. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.
Technical Details
- Manufacturer part number: 220-6419
- Component: Brake flexline and fitting kit
- Hose length (inches): 22.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: 90 Degree
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-6413
- Chassis retaining clip reference: 300-15780
- Line support reference: 250-8361
- Hose quantity: 2
- Listed weight: 1.000 lb
Fitment & Compatibility
Confirm the Honda Civic's original brake configuration and the exact Wilwood front kit rather than applying a broad Civic year range. The 240 mm reference identifies the original brake layout, not the diameter of every conversion rotor that may use these hoses.
Manufacturer Documents
PMB Performance can help compare the fitting arrangement with your brake system, drawing on over 20 years of experience. Include the vehicle details and clear views of the mating hardware.
