Product details

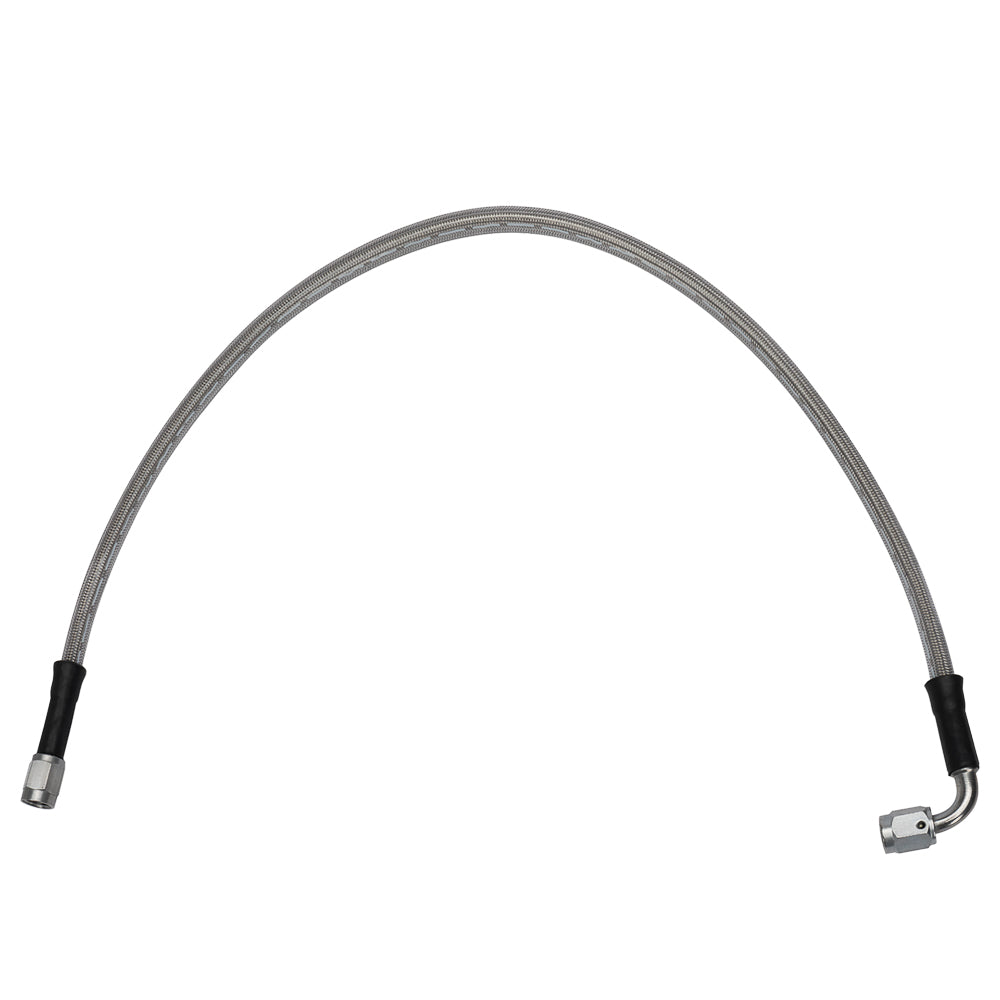

The 22-inch length gives this individual Wilwood flexline a longer route between its straight and angled connections. A 90-degree female -3 fitting controls the approach at one end without requiring a separate elbow there. Based in Camarillo, California, Wilwood Engineering was founded by Bill Wood in 1977. Its work includes the design and manufacture of disc brake systems, calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component choice must suit the complete brake system, including its intended use and mating hardware.
Technical Details
- Manufacturer part number: 220-6414
- Component: Individual braided brake hose
- Hose length (inches): 22.00
- Line or fitting size: -3
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: 90 Degree
- Hose quantity: 1
- Listed weight: 0.500 lb
Fitment & Compatibility
Compare the full hose path, fitting orientation and available support points before selecting this universal line. Keep sufficient movement for the installation without allowing the longer hose to touch a wheel, rotor or suspension component.
