Product details

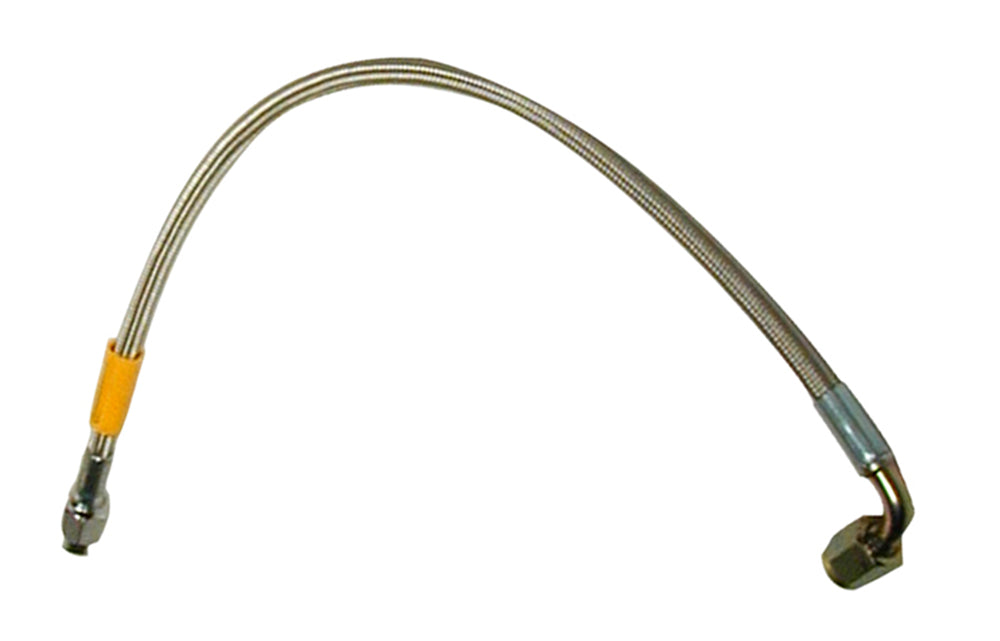

One end of this 14-inch Wilwood hose turns through 90 degrees to suit an angled connection path. The opposite end remains straight, and both fittings are female -3 interfaces. The Wilwood range brings together calipers, brake rotors, master cylinders, valves, fittings and brake lines for complete-system component selection. Wilwood Engineering was founded by Bill Wood in 1977, is based in Camarillo, California, and designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 220-6411
- Component: Individual braided brake hose
- Hose length (inches): 14.00
- Line or fitting size: -3
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: 90 Degree
- Hose quantity: 1
- Listed weight: 0.500 lb
Fitment & Compatibility
Measure the required overall length and confirm that the elbow faces the intended mating adapter without twisting the hose. This is a single universal flexline, so chassis adapters, caliper fittings and mounting provisions must be selected for the installation.
Manufacturer Documents
PMB Performance has over 20 years of experience with brake components and fitment. Send the vehicle details, installed brake kit and connection measurements if you need help choosing the correct plumbing.
