Wilwood Metric Caliper Bleed Screw Assemblies, M10 x 1 Bodies, Four-Pack

This four-pack contains complete two-piece bleed assemblies for selected Wilwood calipers with metric bleeder ports. Each assembly combines an M10 x 1 body with a smaller 1/4-28 bleed screw. Wilwood Engineering was founded in 1977 by Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Each part is selected to match the complete brake system.

Technical Details

• Manufacturer part number: 220-6069
• Component: Bleed Screw Kit
• Connection specification: 10mm x 1.0
• Bleed screw thread: 1/4-28; body thread listed separately
• Bleed assemblies per package: 4

Fitment & Compatibility

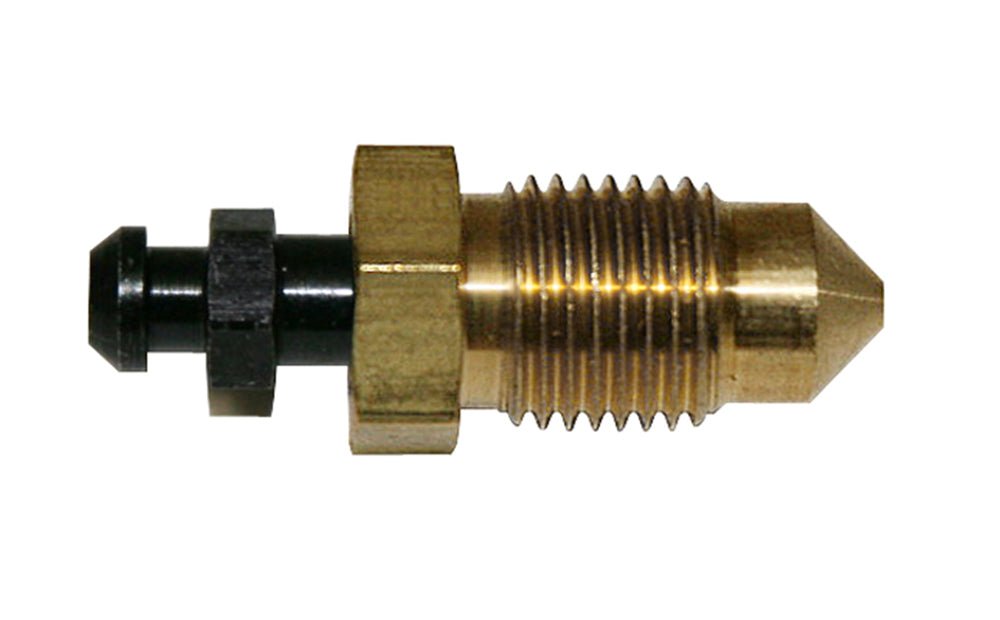

Check the caliper's threaded bleed body rather than measuring only the removable screw. The single assembly in the product photograph represents the four-piece package; it is not the imperial NPT bleed-body kit.

Manufacturer Documents

• Wilwood product specifications
• Wilwood flexline fitting guide

Use PMB Performance's 20-plus years of experience when checking uncertain fitment. Identify the actual hose ends, port seats and brake package as well as the vehicle before ordering.
