Product details

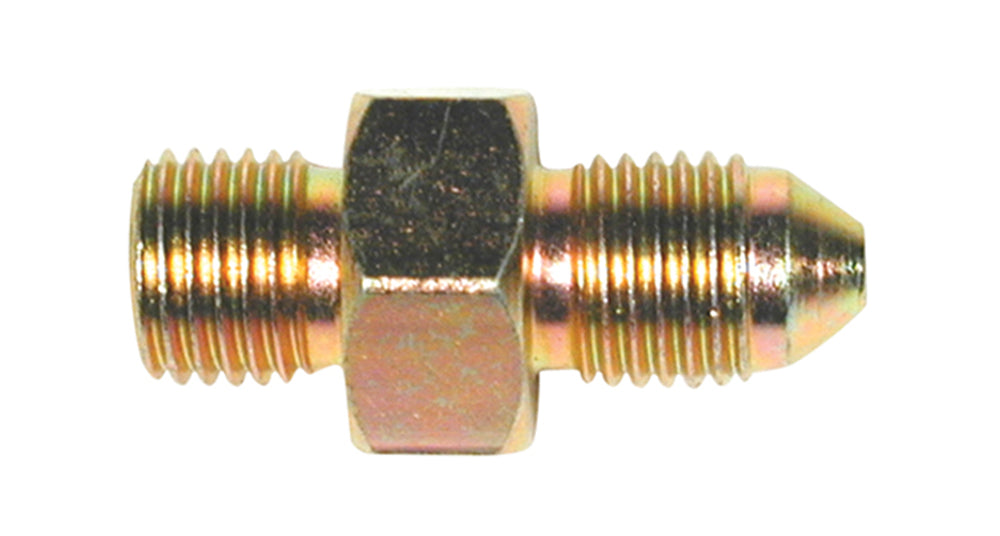

This outlet adapter links a suitable single-outlet master cylinder to a -3 JIC brake hose. The straight fitting has a 3/8-24 male cylinder thread and a separate male flare for the hose connection. A complete brake system depends on compatible component selection. Wilwood Engineering designs and manufactures disc brake systems along with calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized use. Bill Wood founded Wilwood in 1977; the company is based in Camarillo, California.
Technical Details
- Manufacturer part number: 220-3406
- Component: Master cylinder or reservoir fitting
- Connection specification: -3JIC to 3/8-24 Male
- Package quantity: 1
Fitment & Compatibility
Wilwood identifies the compact remote master cylinder outlet application and notes that a crush washer is normally required. Verify the port's sealing design and obtain the specified washer where needed; the single fitting is not the later adapter-and-washer kit.
Manufacturer Documents
With more than 20 years of experience, PMB Performance can assist with brake-component selection. Provide the vehicle and installed brake details so the connection and mounting requirements can be checked together.
