Product details

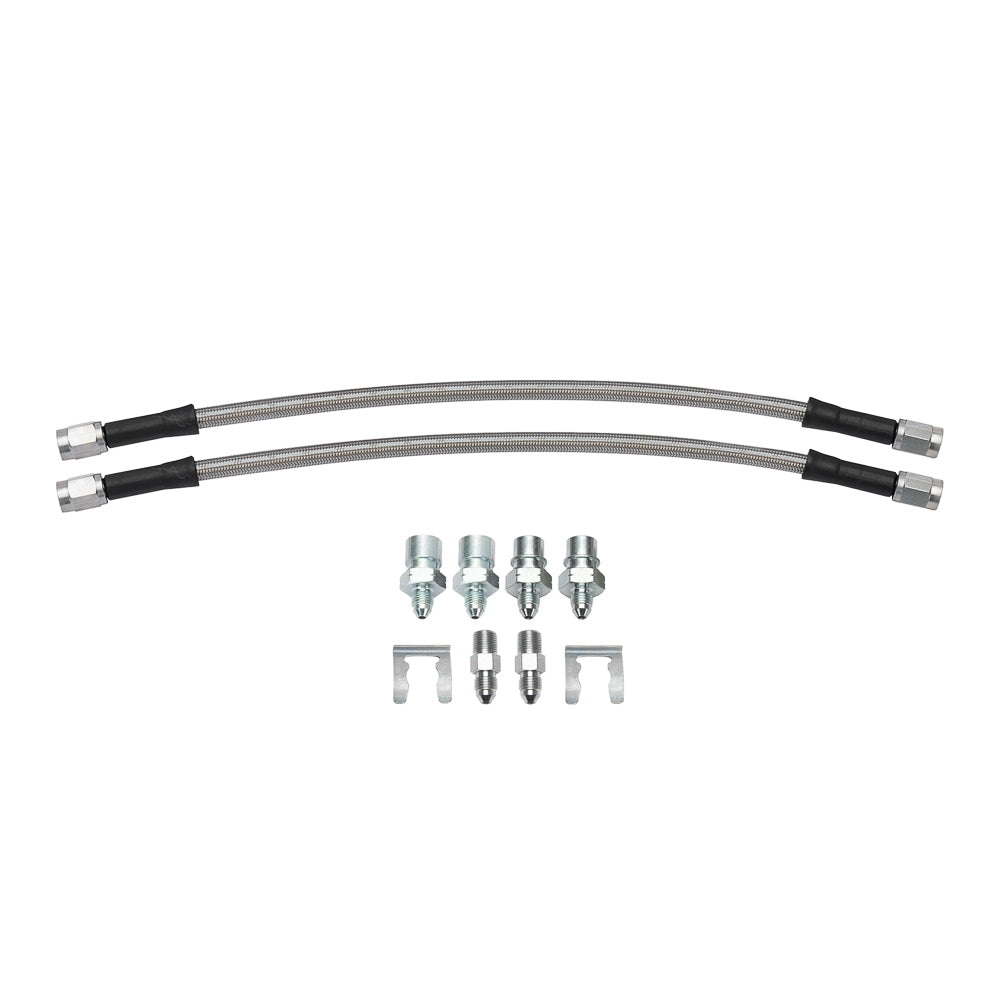

The Superlite rear conversion on the S2000 uses straight NPT caliper fittings rather than a CPB banjo connection. Wilwood supplies 12-inch straight-ended hoses and both specified M10 x 1 chassis adapter styles. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form its component range, with individual parts chosen to match the complete system rather than considered in isolation.
Technical Details
- Manufacturer part number: 220-18589
- Component: Brake flexline and fitting kit
- Hose length (inches): 12.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 inverted flare or bubble flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: Straight
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6956
- Chassis adapter reference: 220-6413 / 220-6890
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.850 lb
Fitment & Compatibility
Confirm the 2000–2009 Honda S2000 rear Superlite brake kit and select the inverted-flare or bubble-flare chassis adapter that matches the hard line. Hose length and caliper inlet style prevent treating the CPB hose set as interchangeable.
Manufacturer Documents
PMB Performance has over 20 years of experience with brake components and fitment. Send the vehicle details, installed brake kit and connection measurements if you need help choosing the correct plumbing.
