Product details

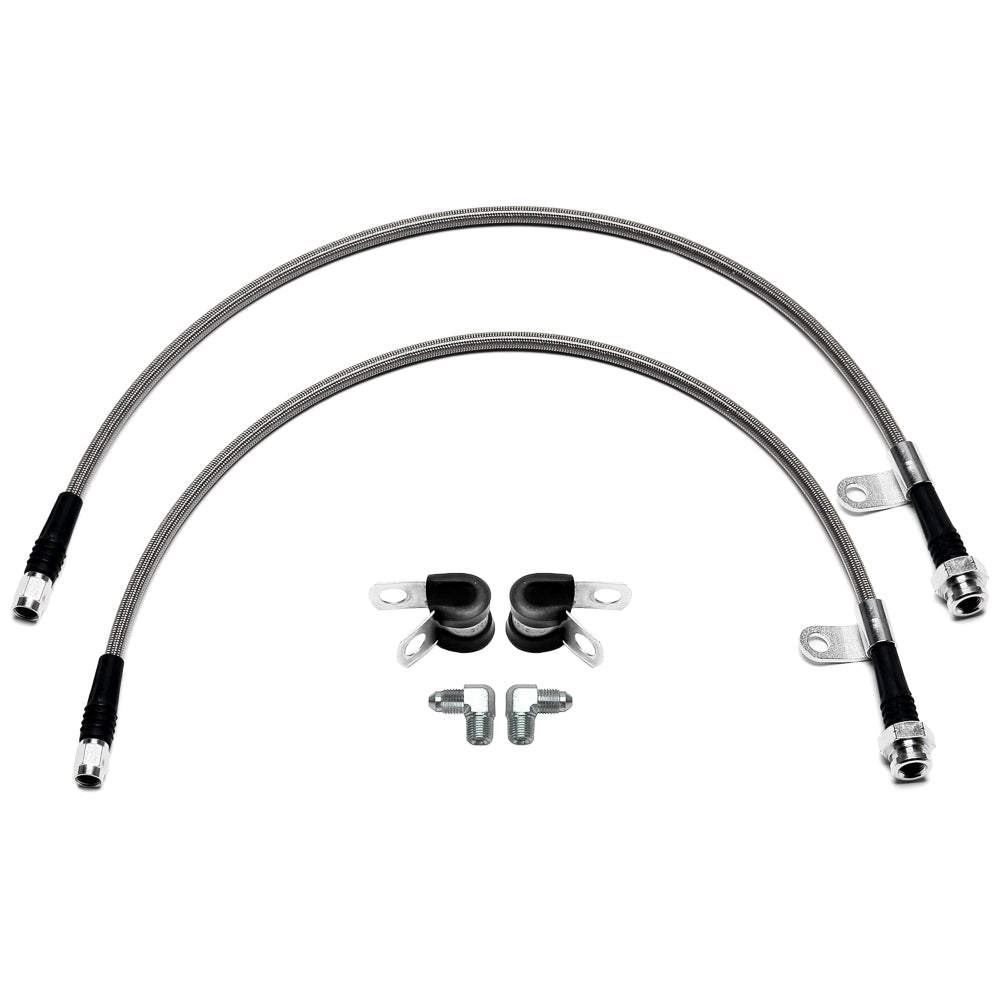

This later Tacoma front hose package incorporates the metric hard-line connection into each flexline. Wilwood pairs the 23-inch hoses with NPT caliper elbows and retention hardware for the specified conversion layout. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Those components need to be selected together around the complete brake system's requirements.
Technical Details
- Manufacturer part number: 220-18382
- Component: Brake flexline and fitting kit
- Hose length (inches): 23.00
- Line or fitting size: -3
- Hose inlet connection: M10 inverted flare Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Hose quantity: 2
Fitment & Compatibility
Match the 2024–2025 Toyota Tacoma front brake kit and the actual M10 inverted-flare chassis connection. Check the integral tabs and clamps against the vehicle before installation; earlier Tacoma hose kits have different dimensions and hardware.
Manufacturer Documents
For a fitment check, give PMB Performance the vehicle year, brake configuration and details of both mating connections. Our team brings more than 20 years of parts and brake-system experience to the comparison.
