Product details

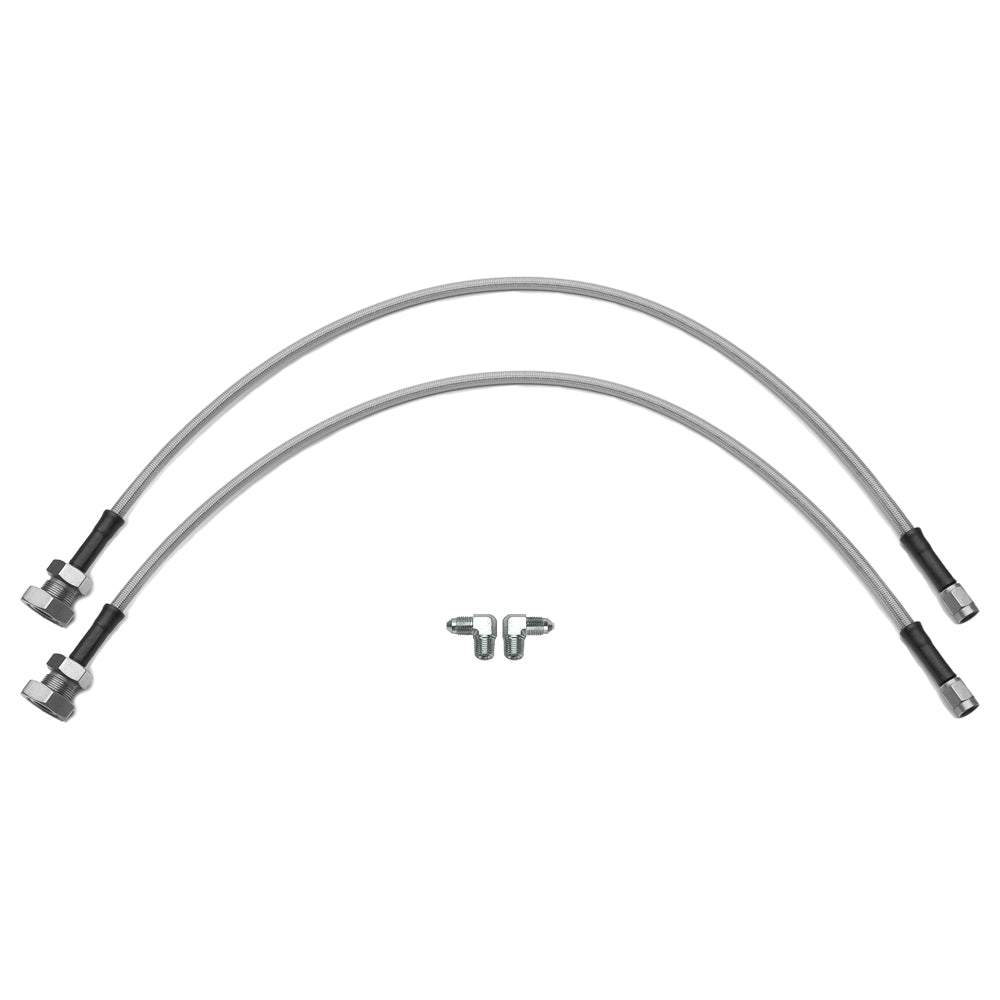

These Wilwood flexlines use a bulkhead attachment to secure the chassis-side connection through a panel or bracket. The 24-inch hoses connect to separate 90-degree NPT elbows at the calipers. For Wilwood Engineering, component selection forms part of matching a complete brake system to its application. Founded in 1977 by Bill Wood and based in Camarillo, California, the company designs and manufactures disc brake systems and a range of calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications.
Technical Details
- Manufacturer part number: 220-18356
- Component: Brake flexline and fitting kit
- Hose length (inches): 24.00
- Line or fitting size: -3
- Hose inlet connection: 3/8-24 Male Bulkhead
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Hose quantity: 2
- Listed weight: 0.900 lb
Fitment & Compatibility
The 5/8-26 external bulkhead thread is for mounting, while the listed 3/8-24 connection identifies the hydraulic interface. Verify both separately, including the line seat and panel thickness; no vehicle-specific fitment is claimed for this package.
