Product details

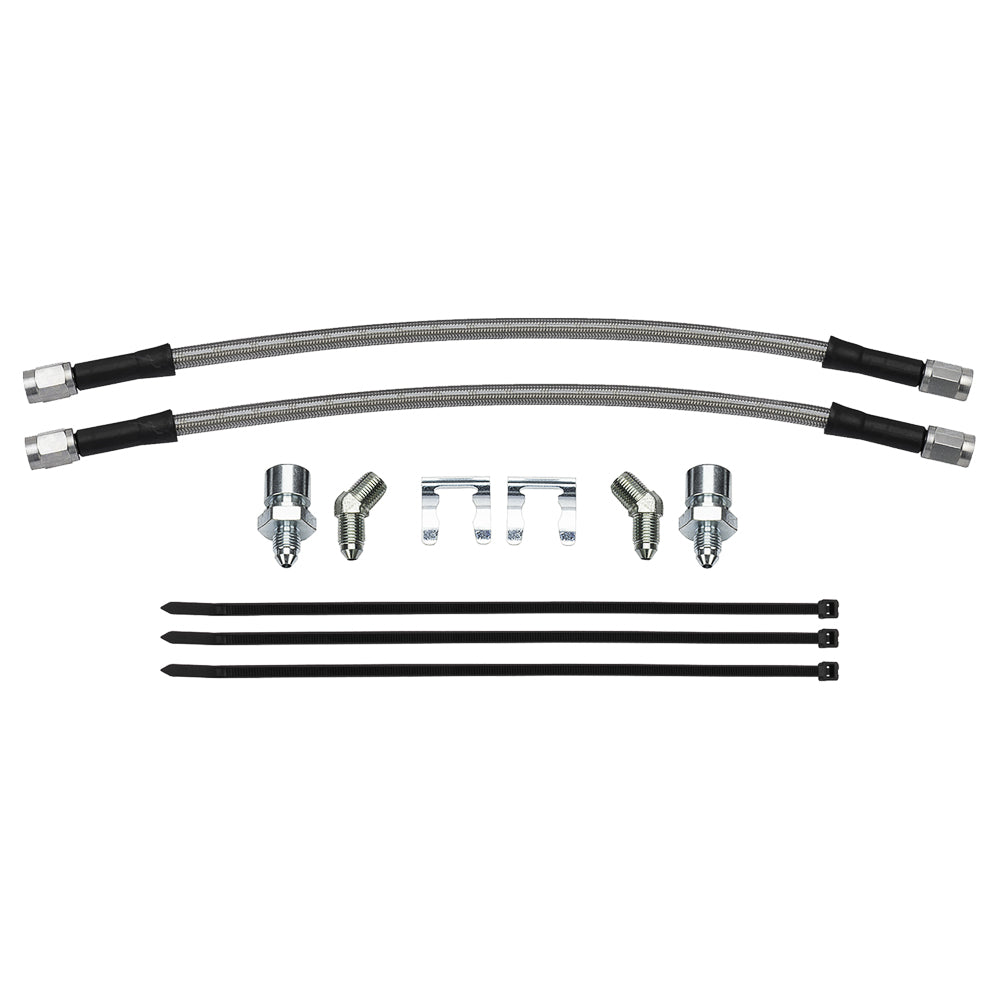

The Nissan rear conversion uses a shorter 12-inch flexline set with 45-degree caliper adapters. Chassis connection hardware and retention ties accompany the hoses so the flexible section can be supported away from moving parts. Bill Wood established Wilwood Engineering in 1977, and the company is based in Camarillo, California. It designs and manufactures disc brake systems, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized use. The individual parts must be selected as compatible elements of the complete brake system.
Technical Details
- Manufacturer part number: 220-18269
- Component: Brake flexline and fitting kit
- Hose length (inches): 12.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1 inverted flare
- Hose inlet connection: M10 inverted flare Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 45 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-6412
- Chassis adapter reference: 220-6413
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.750 lb
Fitment & Compatibility
Wilwood lists Skyline applications for 1989–2002 and 240SX for 1989–1998. Verify the precise rear kit and M10 x 1 inverted-flare interface; the product detail lists both an integrated metric hose inlet and a separate chassis adapter, so follow the actual supplied assembly arrangement.
Manufacturer Documents
PMB Performance draws on over 20 years of brake and parts experience. Clear photographs of the connections and the installed brake package are useful when confirming this component.
