Product details

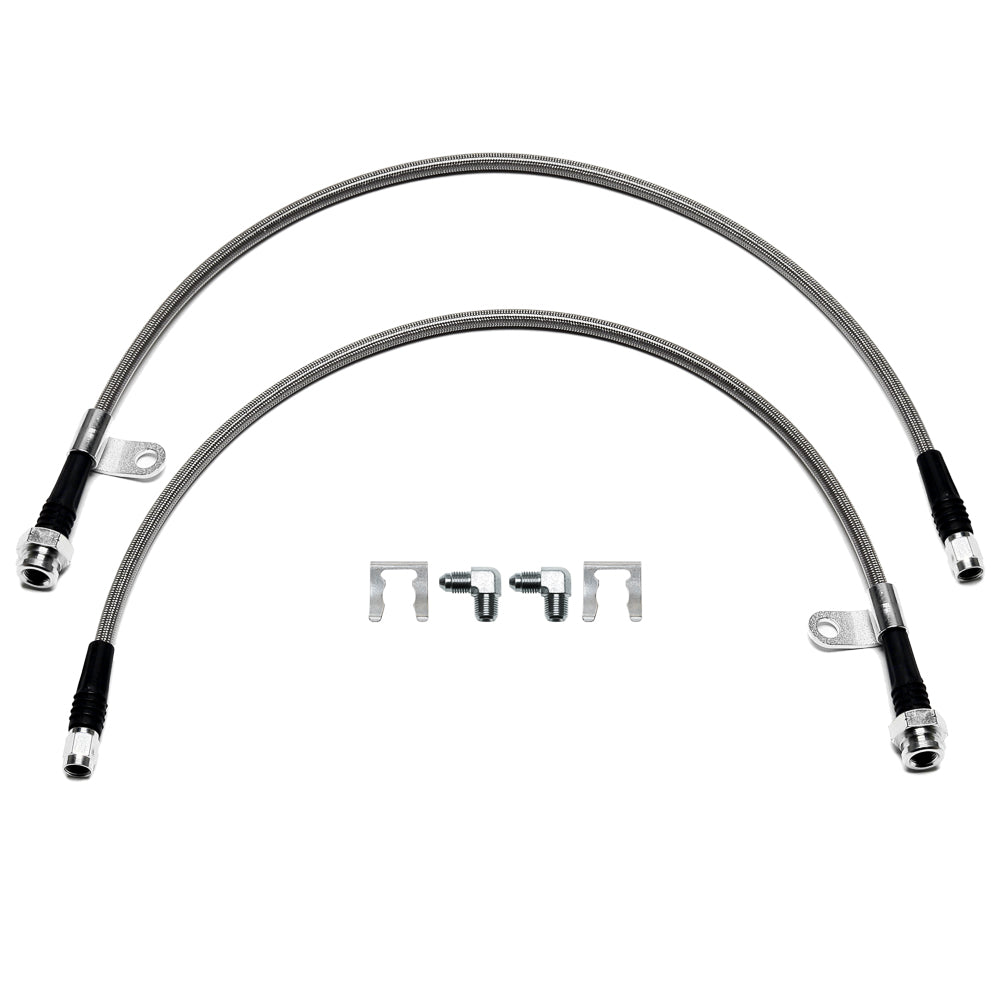

These front flexlines incorporate a metric chassis connection and mounting tabs into the hose arrangement. Wilwood supplies 90-degree NPT adapters for the conversion calipers, leaving the 23-inch flexible section between the supported ends. Wilwood Engineering designs and manufactures disc brake systems from its base in Camarillo, California. Bill Wood founded the company in 1977; its range now includes calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component selection must account for the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 220-18241
- Component: Brake flexline and fitting kit
- Hose length (inches): 23.00
- Line or fitting size: -3
- Hose inlet connection: M10 inverted flare Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
- Listed weight: 0.900 lb
Fitment & Compatibility
The kit note identifies Nissan 240SX for 1989–1998 and Skyline for 1989–2002. Confirm the exact Wilwood front conversion, chassis seat and mounting-tab location; those model ranges do not cover every factory caliper or market configuration automatically.
Manufacturer Documents
With more than 20 years of experience, PMB Performance can assist with brake-component selection. Provide the vehicle and installed brake details so the connection and mounting requirements can be checked together.
