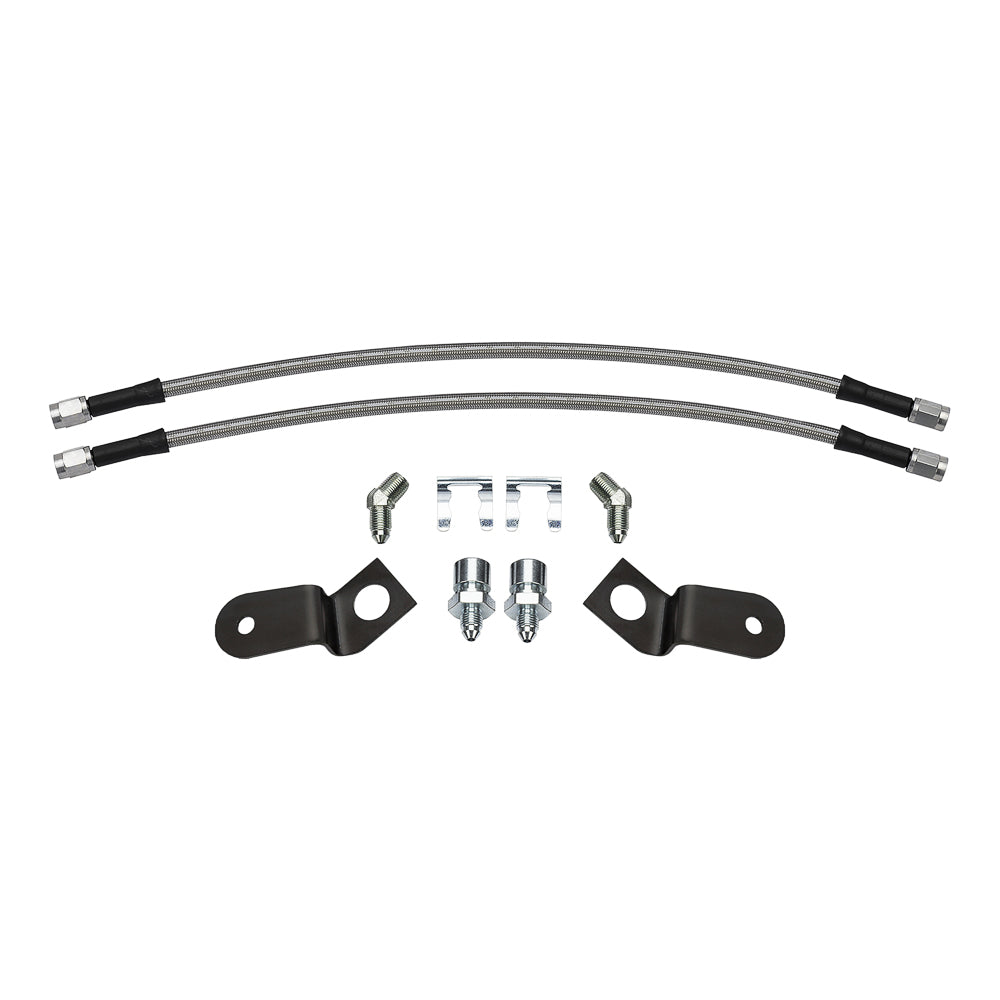

Wilwood Front Ram 1500 4WD Conversion Lines (2013–2018), 14-Inch Hoses and Mounting Brackets

The four-wheel-drive Ram front installation uses this Wilwood hose package with dedicated chassis brackets. Its 14-inch lines provide a different route from the shorter hoses specified for the two-wheel-drive truck. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California, where it designs and manufactures disc brake systems and components. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications, with each component selected to suit the complete brake system.

Technical Details

• Manufacturer part number: 220-18206
• Component: Brake flexline and fitting kit
• Hose length (inches): 14.00
• Line or fitting size: -3
• Chassis adapter connection: -3 to M10 x 1 inverted flare
• Hose inlet connection: -3 Female
• Hose inlet angle: Straight
• Hose outlet connection: -3 Female
• Hose outlet angle: Straight
• Caliper adapter angle: 45 Degree
• Caliper connection: 1/8-27 NPT
• Caliper adapter reference: 220-6412
• Chassis adapter reference: 220-6413
• Chassis retaining clip reference: 300-15780
• Line support reference: 250-11776 / 250-11777
• Hose quantity: 2
• Listed weight: 0.950 lb

Fitment & Compatibility

DS-1343 assigns this hose kit to the 2013–2018 Ram 1500 4WD front TX6R conversion. Confirm the actual brake package, M10 x 1 inverted-flare hard lines and bracket positions; the 2WD kit is a separate selection.

Manufacturer Documents

• Wilwood product specifications
• Wilwood flexline fitting guide
• Wilwood application and installation reference

If the brake system has been modified, contact PMB Performance with the installed component references and routing dimensions. We have more than 20 years of experience helping match brake parts to their applications.
