Product details

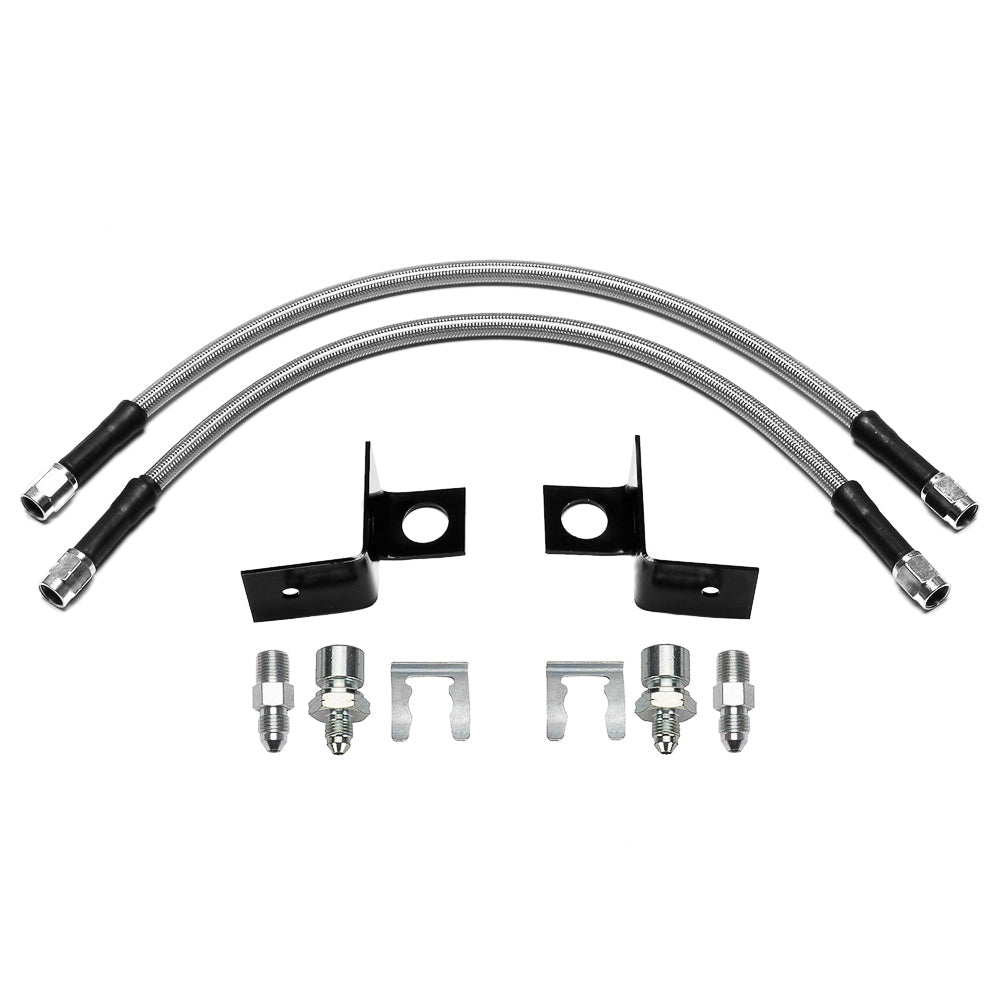

The current Wilwood specification identifies this as a 14-inch hose package with M10 x 1.5 inverted-flare chassis adapters. Mounting brackets and clips support the hard-line connection, while NPT elbows turn the hose toward each caliper. Bill Wood founded Wilwood Engineering in 1977, and the manufacturer is based in Camarillo, California. Wilwood designs and manufactures disc brake systems alongside calipers, master cylinders, rotors, fittings, brake lines and valves. The motorsport, street-performance and specialized ranges depend on components selected to work within a complete braking system.
Technical Details
- Manufacturer part number: 220-17925
- Component: Brake flexline and fitting kit
- Hose length (inches): 14.00
- Line or fitting size: -3
- Chassis adapter connection: -3 to M10 x 1.5 inverted flare
- Hose inlet connection: -3 Female
- Hose inlet angle: Straight
- Hose outlet connection: -3 Female
- Hose outlet angle: Straight
- Caliper adapter angle: 90 Degree
- Caliper connection: 1/8-27 NPT
- Caliper adapter reference: 220-13125
- Chassis adapter reference: 220-13923
- Chassis retaining clip reference: 300-15780
- Hose quantity: 2
Fitment & Compatibility
Choose by the verified 14-inch length and coarse metric chassis thread, not the inconsistent 16-inch/M15 wording found in older product names. No specific vehicle or axle is established on the current page, so compare the complete hydraulic route and mounting points.
Manufacturer Documents
Use PMB Performance's 20-plus years of experience when checking uncertain fitment. Identify the actual hose ends, port seats and brake package as well as the vehicle before ordering.
